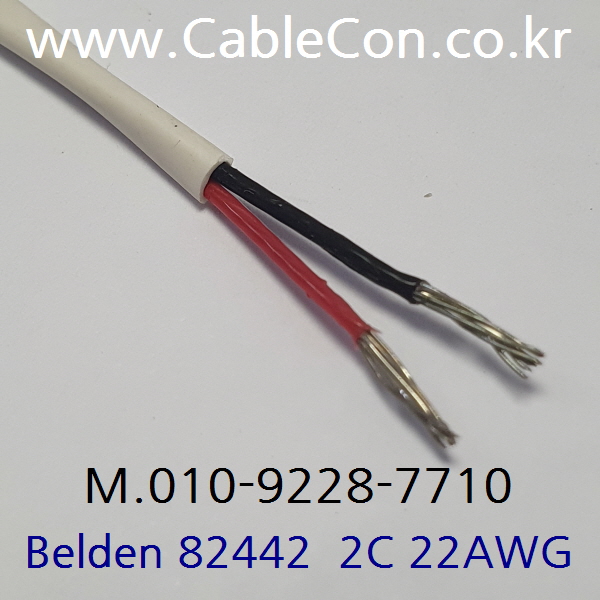

BELDEN 82442, 오디오, 제어, 계장용 케이블, FEP Insulation, PVC Outer Jacket, CMP
선재: 2C x 22(7x30)AWG
콘덕터 재질: TC - Tinned Copper
절연체 재질: FEP - Fluorinated Ethylene Propylene
색상 코드: Black & Red

쉴드 타입: No Shield
드레인와이어: 해당없음
외피 재질: PVC - Polyvinyl Chloride (Flamarrest? / LS(Low Smoke ) PVC

사용환경:
BELDEN 82442, Indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...);
low voltage control (24v, …); line level audio; voice communications; panel wiring

표준 및 준수항목:
UL Voltage Rating: 300 V RMS
Operating Temp Range:: 0°C to +60°C
NEC Articles: Article 800
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
CPR Euroclass: Eca
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
MII Order #39 (China RoHS): Yes
UL Flammability: NFPA 262
CSA Flammability: FT6, FT4
IEC Flammability: IEC 60332-1-2
Non-Plenum Number: 8442

벨덴 품번 정보:
BELDEN 82442 8771000 (Natural, 300M)
