BELDEN 83553, 고온용(200°C) 오디오, 제어, 계장용, FEP Jkt, CMP
선재: 3C x 22(7x30)AWG
콘덕터 재질: TC - Tinned Copper
절연체 재질: FEP - Fluorinated Ethylene Propylene
색상 코드: Black, White, Red

쉴드 타입:
Tape 1) Bi-Laminate (Alum+Poly) / 차폐율: 100%
Braid 2) Tinned Copper (TC) / 차폐율: 85%
드레인와이어: 해당없음

외피 재질: FEP - Fluorinated Ethylene Propylene

사용환경:
BELDEN 83553, Extreme high/low temperature
environments; chemical resistant; outdoor and burial applications;
low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …);
 line level audio; voice communications; panel wiring

표준 및 준수항목:
Voltage Rating: 300 V (CMP)
Operating Temp Range:: -70°C to +200°C
Environmental Suitability: Indoor, Outdoor, Oil Resistance, Burial
Sustainability: CA Prop 65
Flammability / Fire Resistance: NFPA 262, FT6, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU,
EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

벨덴 품번 정보:
BELDEN 83553 002100 (Red, 30M)
BELDEN 83553 002500 (Red, 150M)
BELDEN 83553 0021000 (Red, 300M)

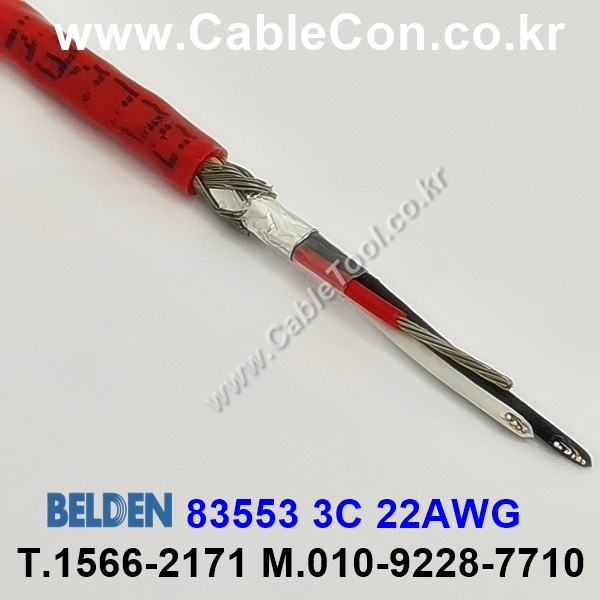

www.cablecon.co.kr  벨덴83553 사진 www.cable.kr  Belden 카다로그
