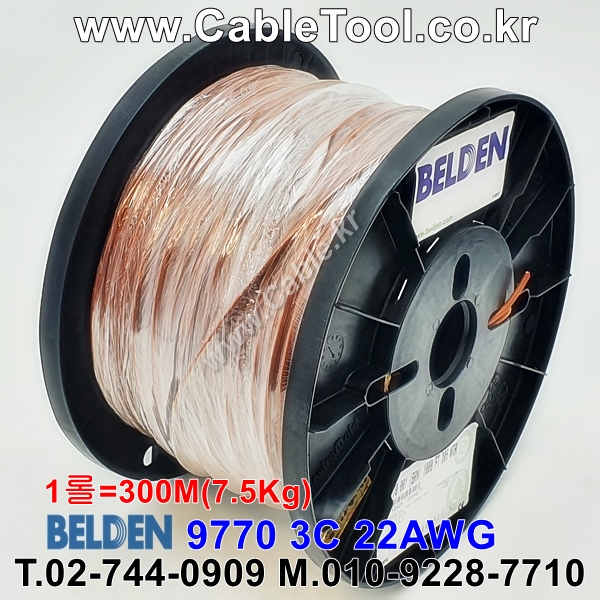

BELDEN 9770 3C x 22(7x30)AWG 9770
 ۾ : T.744-0909
ȸ : 45
   http://www.beldenkorea.com/pdf/usa/4.12-4.13.PDF [17]
   https://catalog.belden.com/techdata/EN/9770_techdata.pdf [14]

BELDEN ̺, AlphaWire Ŀ̾ ѱ ̺ ܢ

T.02-744-0909   M.010-9228-7710 ( Belden )



BELDEN 9770 - Electronic, 3 C #22 Str TC, PO Ins, OS, PVC Jkt, CM

Color Code: 001(Brown)

Length(ft): 9770 001500, 9770 0011000, 9770 0015000



3 Conductor 22AWG (7x30) Tinned Copper

PO Insulation

Overall Beldfoil Shield

PVC Outer Jacket



Standards

NEC/(UL) Specification: CM

CEC/C(UL) Specification: CM

CPR Euroclass: Eca



Flammability

UL Flammability: UL1685 UL Loading

CSA Flammability: FT1

ISO/IEC Flammability: IEC 60332-1-2



www.CableCon.co.kr  9770  www.Cable.kr  Belden īٷα
