BELDEN 83803 3C x 12(7x20)AWG , UL CMP, FPLP, Fire Alarm, Low Voltage Signal & Control Cable
 ۾ : T.744-0909
ȸ : 439
   http://www.beldenkorea.com/pdf/usa/4.32-4.34.PDF [92]
   https://catalog.belden.com/techdata/EN/83803_techdata.pdf [94]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)



BELDEN  83803 - Intercom/PA Systems, Sound/Audio Systems

Color Code: 002 (Red)

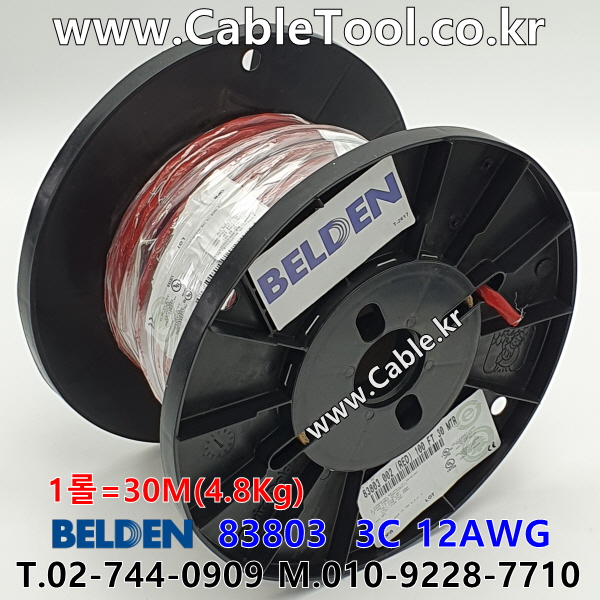

Length: 100ft, 500ft, 1000ft, 30M, 150M, 300M


Application

Home & High-End Audio ̺

Fire Alarms; Extreme High/Low Temperature Environments; Indoor/Outdoor Applications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Control (24v, )

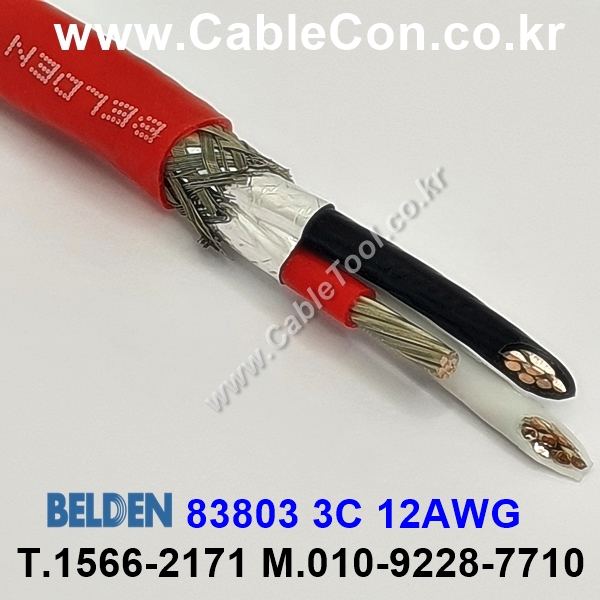

Physical Characteristics (Overall)

Conductor: 3C x 12(7x20)AWG, TC - Tinned Copper

Insulation: FEP - Fluorinated Ethylene Propylene / Teflon

Color Chart: 1) Black / 2) White / 3) Red

Shield

Layer 1) Tape: Beldfoil (Alum / Poly) (Coverage: 100%)

Layer 2) Braid: TC - Tinned Copper (Coverage: 85%)

Jacket: FEP - Fluorinated Ethylene Propylene / Teflon


Standards

NEC Articles: 760, 800

NEC/(UL) Specification: CMP, FPLP

CEC/C(UL) Specification: CMP

CPR Euroclass: Eca


Flammability

UL Flammability: NFPA 262

CSA Flammability: FT6

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS
