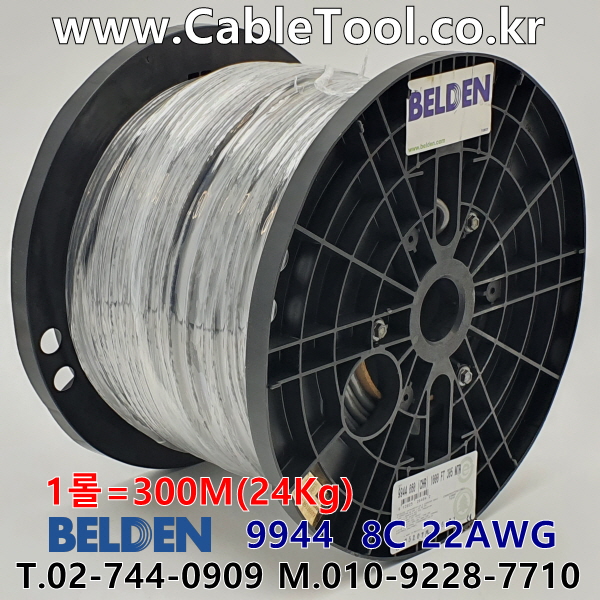

BELDEN 9944 8C x 22(7x30)AWG , EIA RS-232, UL AWM 2464, NEC Type CMG
 ۾ : T.744-0909
ȸ : 1,276
   http://www.beldenkorea.com/pdf/usa/4.19%20Belden%20USA.pdf [301]
   https://catalog.belden.com/techdata/EN/9944_techdata.pdf [340]

BELDEN īٷα ٷΰ:  www.cable.kr
BELDEN
θ ٷΰ:  www.cabletool.kr


BELDEN  AlphaWire Ŀ̾ ѱ ̺ܢ & ̺()
.02-744-0909  /  M.010--7710 ( )


.02-744-1575  /  M.010-ĥ-7710 (û)
.02-744-1576  /  M.010-ĥĥ-7710 ( )

.02-744-1577  /  M.010-̻-7710 (õ)
.02-744-1578  /  M.010--7710 (ؿ )

BELDEN  9944 – Computer EIA RS-232 Cable

Application: RS-232, UL AWM 2464

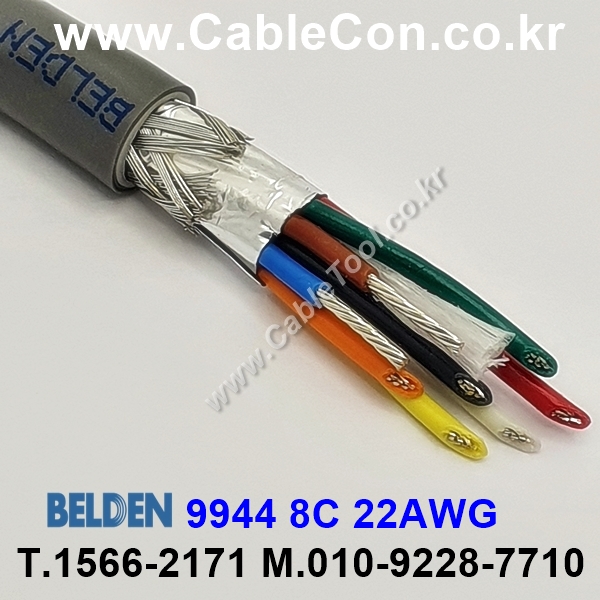

Physical Characteristics (Overall)
Conductor: 8C x 22(7x30)AWG, TC - Tinned Copper
Insulation: S-R PVC - Semi-Rigid Polyvinyl Chloride
Color Chart: Black, White, Red, Green, Brown, Blue, Orange, Yellow

Shield:
Tape 1) Beldfoil(Alum / Poly )/ Coverage: 100 %
Braid 2) TC-Tinned Copper / Coverage: 65 %
Drain Wire: N/A
Jacket: PVC-Polyvinyl Chloride

Standards and Compliance
Environmental Suitability: Indoor (Not Riser or Plenum), Indoor

Sustainability: CA Prop 65

Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2

NEC / UL Compliance: Article 800, CMG

AWM Compliance: 2464

CEC / C(UL) Compliance: CMG

CPR Euroclass: Eca

European Directive Compliance: EU CE Mark
