BELDEN 83506 6C x 24(7x32)AWG , ¿(200C) , , , FEP Jkt, CMP
 ۾ : T.744-0909
ȸ : 660
   http://www.beldenkorea.com/pdf/usa/4.25-4.27.PDF [168]
   https://catalog.belden.com/techdata/EN/83506_techdata.pdf [191]

BELDEN īٷα ٷΰ:  www.Cable.kr
BELDEN 83506 θ ٷΰ:  www.cabletool.kr/shop/Belden-83506_belden

BELDEN AlphaWire Ŀ̾ ѱ ̺ܢ & ̺()
.02-744-0909  /  M.010--7710 ( )


.02-744-1575  /  M.010-ĥ-7710 (û, , )
.02-744-1576  /  M.010-ĥĥ-7710 ( )

.02-744-1577  /  M.010-̻-7710 (, õ, )

.02-744-1578  /  M.010--7710 (ؿ, )

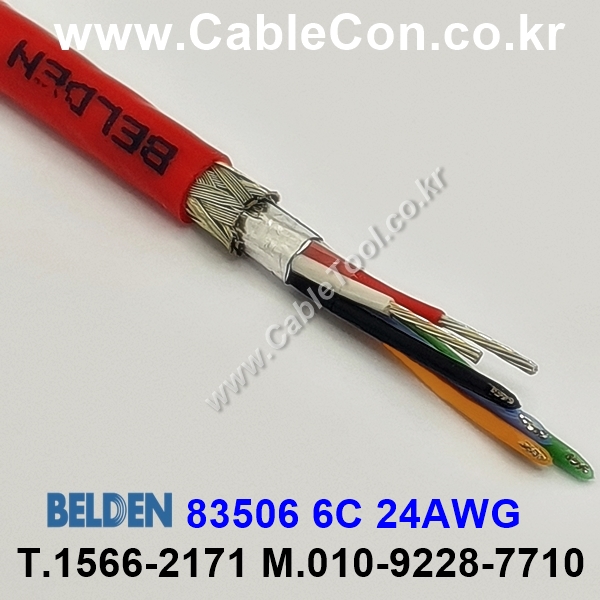

BELDEN 83506
,
¿(200C) , , , FEP Jkt, CMP
: 6C x 24(7x32)AWG
ܴ :
TC - Tinned Copper
ü : FEP - Fluorinated Ethylene Propylene
ڵ: Black, White, Red, Green, Orange, Blue

Ÿ: ü ȣ+ּ (Overall Beldfoil+Tinned Copper Braid()
Tape 1) Bi-Laminate (Alum+Poly) /
: 100%
Braid 2) Tinned Copper (TC) /
: 85%
巹ο̾: ش
: FEP - Fluorinated Ethylene Propylene

ȯ:
Belden 83506, Extreme high/low temperature environments;
chemical resistant; outdoor and burial applications;
low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v,
);
line level audio; voice communications; panel wiring


ǥ ؼ׸:
Voltage Rating: 300 V (CMP)
Operating Temp Range:: -70
C to +200C
Environmental Suitability: Indoor, Outdoor, Oil Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance: NFPA 262, FT6, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP

European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU,
EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Notes: Gas Resistant

ǰ :
BELDEN 83506 002500 (Red, 150M)

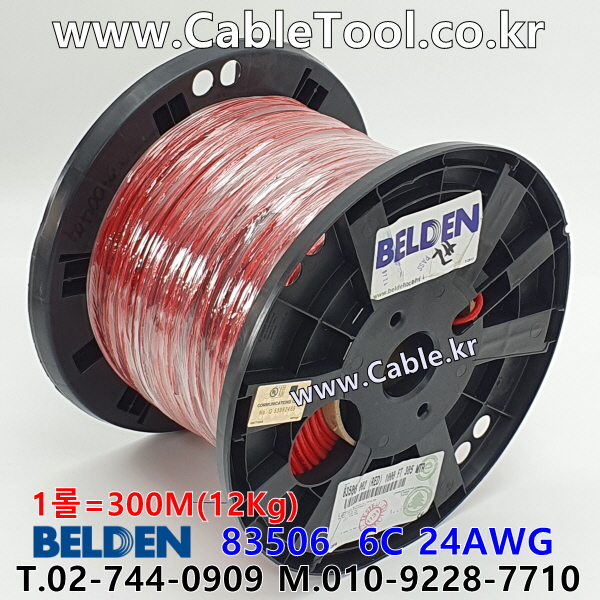

BELDEN 83506 0021000 (Red, 300M)
