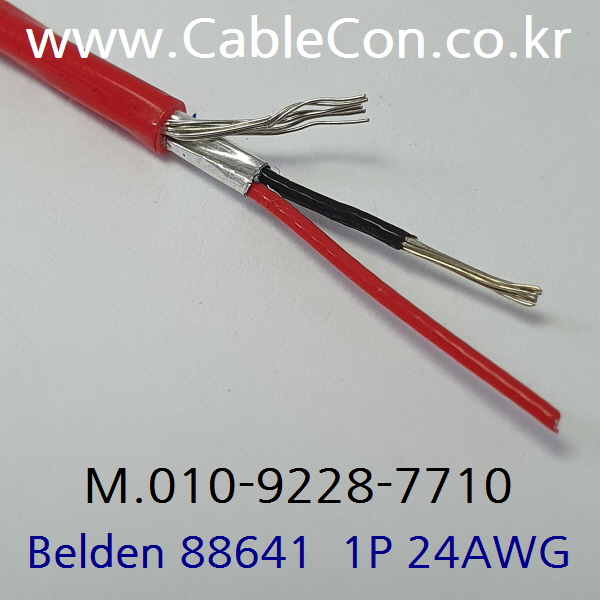

BELDEN 88641, 고온용(200°C) RS232, 2C 24(7x32)AWG, FEP Outer Jacket, CMP
선재: 1Px24(7x32)AWG
콘덕터 재질: TC - Tinned Copper
절연체 재질: FEP - Fluorinated Ethylene Propylene
색상 코드: Black & Red

쉴드 타입:
Tape 1) Bi-Laminate (Alum+Poly) / 차폐율: 100%
드레인와이어: 24 AWG (7x32) TC

외피 재질: FEP - Fluorinated Ethylene Propylene

사용환경:
BELDEN 88641, Extreme high/low temperature environments; chemical resistant;
outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...);
low voltage digital control (24v, …); line level audio; voice communications; panel wiring

표준 및 준수항목:
UL Voltage Rating: 300 V (CMP)
Operating Temp Range:: -70°C to +200°C
Environmental Suitability: Indoor, Oil Resistance, Burial
Sustainability: CA Prop 65
Flammability / Fire Resistance: NFPA 262, FT6, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU,
EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 82641
Non-Plenum Number: 8641

벨덴 품번 정보:
BELDEN 88641 002100(Red, 30M)
BELDEN 88641 002500(Red, 150M)
BELDEN 88641 0021000(Red, 300M)
