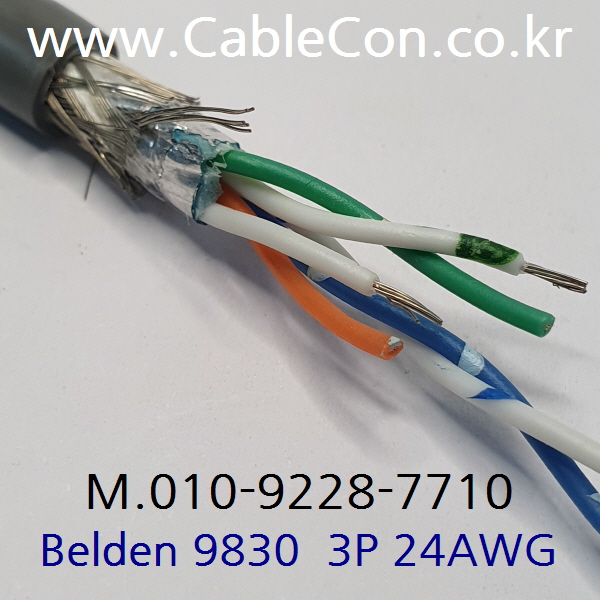

선재: 3P x 24(7x32)AWG
콘덕터 재질: TC - Tinned Copper Conductor
절연체 재질: PE – Polyethylene Insulation
색상 코드: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe
쉴드 타입:
Tape 1) 전체 벨드호일(Beldfoil?) 차폐(차폐율: 100%)
Braid 2) 주석도금 편조차폐(차폐율: 65%)
드레인와이어: 24 AWG (7x32) , TC
외피 재질: PVC - Polyvinyl Chloride

사용환경:
BELDEN 9830, RS-232, RS-422, 4-20mA, Low Voltage Digital Control (24V), DMX-512(조명제어) 전용

표준 및 준수항목:
UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
Operating  Temperature: -30°C to +80°C
Environmental Suitability: Indoor
Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
NEC / UL Compliance: Article 800, CM
AWM Compliance: 2919
CEC / C(UL) Compliance: CM
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
