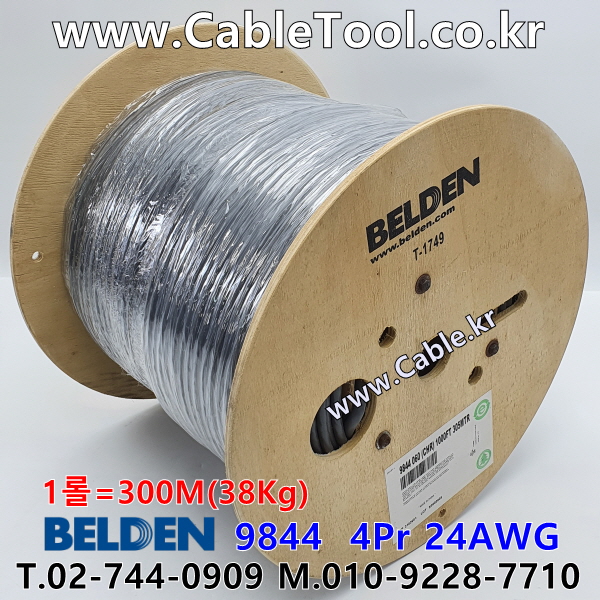

BELDEN 9844, 4P x 24(7x32)AWG , RS485, PVC Jacket, UL AWM 2919, CM
 ۾ : T.744-0909
ȸ : 5,624
   http://www.beldenkorea.com/pdf/usa/5.26-5.32.PDF [171]
   https://catalog.belden.com/techdata/EN/9844_techdata.pdf [191]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

īٷα ٷΰ: www.Cable.kr
Belden
θ ٷΰ: www.Belden.kr

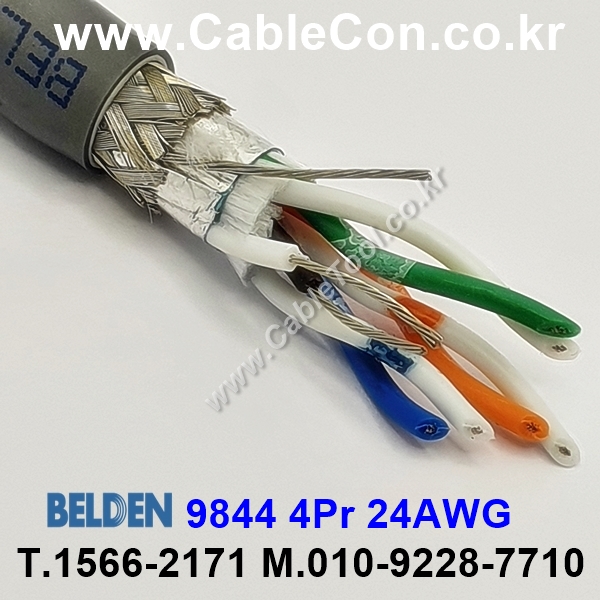

BELDEN 9844,
RS485, PVC Jacket, UL AWM 2919, CM
: 4P x 24(7x32)AWG
ܴ :
TC - Tinned Copper Conductor
ü : PE – Polyethylene Insulation

Ÿ:
Tape 1)
ü ȣ(Beldfoil) (: 100%)
Braid 2)
ּ (: 90%)
巹ο̾: 24(7x32)AWG, TC
: PVC - Polyvinyl Chloride
: Chrome

ȯ:
BELDEN 9844, RS485, Ƴα ȣ(4-20 mA), (24V), RTU, SCADA, Ÿ Ÿ ۿ

ǥ ؼ׸:
UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
Operating  Temperature: -30C to +80C
Environmental Suitability: Indoor
Flammability / Fire Resistance: UL1685 (UL Loading), IEC 60332-1-2
NEC / UL Compliance: Article 800, CM
AWM Compliance: 2919
CEC / C(UL) Compliance: CM
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
