BELDEN Y64348, (82842 ͸ŷ) 2P x 24(7x32)AWG , RS-485, DMX 512(Plenum), Beldfoil+TC Braid Shield, PVC Jacket, CMP
 ۾ : T.744-0909
ȸ : 927
   http://www.beldenkorea.com/pdf/usa/5.26-5.32.PDF [291]
   https://catalog.belden.com/techdata/EN/82842_techdata.pdf [286]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

īٷα ٷΰ: www.Cable.kr
Belden
θ ٷΰ: www.Belden.kr

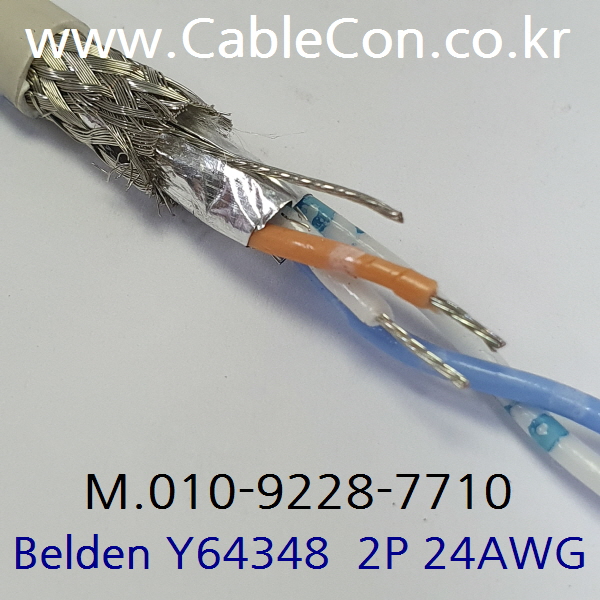

BELDEN  Y64348 (82842
͸ŷ), RS-485, DMX 512(Plenum), Beldfoil+TC Braid Shield, PVC Jacket, CMP
: 2P x 24(7x32)AWG
ܴ :
TC - Tinned Copper Conductor
ü : FEP - Fluorinated Ethylene Propylene (Foam)  Insulation
ڵ: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe

Ÿ:
Tape 1)
ü ȣ(Beldfoil) (: 100%)
Braid 2)
ּ (: 90%)
巹ο̾: 24 AWG (7x32), TC
: PVC - Polyvinyl Chloride

ȯ:
BELDEN Y64348, RS-485, DMX-512(Plenum), 4-20mA, Digital Control(24V), RTU, SCADA

ǥ ؼ׸:
UL Voltage Rating: 300 V (CMP)
Operating  Temperature: -0C to +75C
Environmental Suitability: Indoor
Flammability / Fire Resistance: NFPA 262 Plenum Flame Test (UL910), FT6, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
