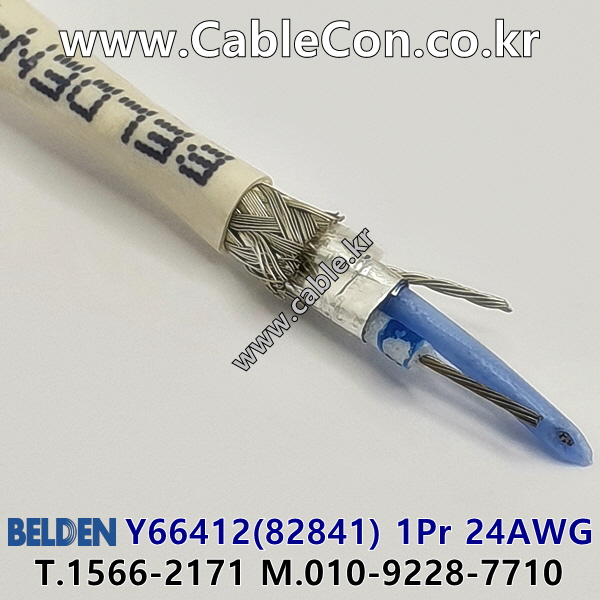

BELDEN  Y66412 (82841 미터마킹),|
EIA RS-485, CMP, Foam FEP Insulation, LS-PVC(Flamarrest?) Jacket
선재: 1P x 24(7x32)
콘덕터 재질: TC - Tinned Copper  Conductor
절연체 재질: FEP - Fluorinated Ethylene Propylene (Foam) Insulation
쉴드 타입:
Tape 1) 전체 Beldfoil? 차폐(차폐율: 100%)
Braid 2) 전체 주석도금 편조 차폐(차폐율: 90%)
드레인와이어: 24(7x32)AWG, TC
외피 재질: LS-PVC(Flamarrest?) Jacket

표준 및 준수항목:
Environmental Suitability: Indoor
Flammability / Fire Resistance: NFPA 262 Plenum Flame Test (UL910), FT6, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
