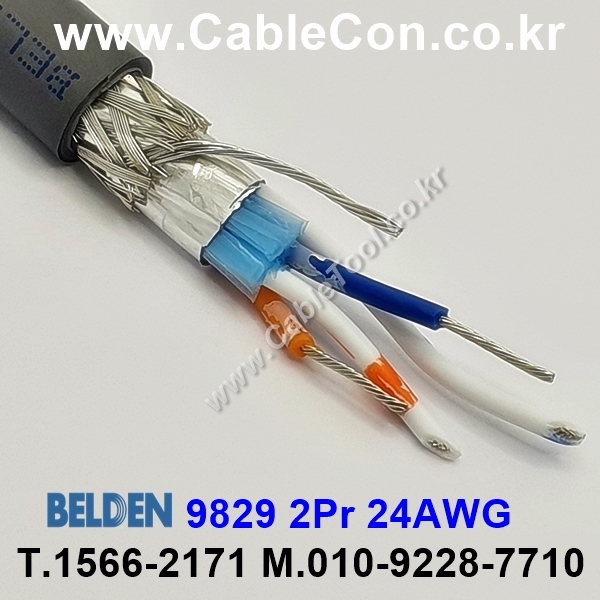

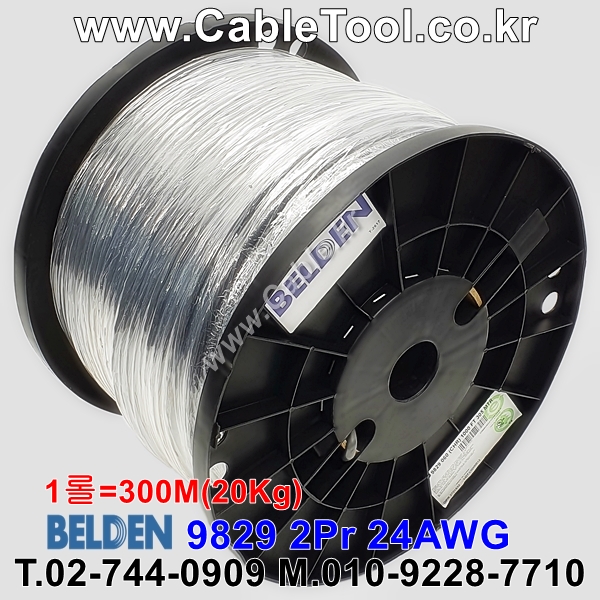

BELDEN 9829, 2P x 24(7x32)AWG º§µ§, RS-422, DMX 512, Beldfoil?+TC Braid Shield, PVC Jacket, UL 2919, CM
 ±Û¾´ÀÌ : »ç¾ç¼­º¸±â
Á¶È¸ : 4,215
   http://www.beldenkorea.com/pdf/usa/5.30%20Belden%20USA.pdf [1325]
   https://catalog.belden.com/techdata/EN/9829_techdata.pdf [1581]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±âwww.Cable.kr
BELDEN 9829 ¼îÇθô ¹Ù·Î°¡±â:
www.cabletool.co.kr/shop/Belden-9829_belden

BELDEN º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄܢߠ& ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)

¢Ï
.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (ÃæûÀü¶ó°æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï
.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±âÀÎõ°­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿ÜÁ¦ÁÖ ¹®ÀÇ)


BELDEN 9829, RS-422, DMX 512, Beldfoil?+TC Braid Shield, PVC Jacket, UL 2919, CM
¼±Àç: 2P x 24(7x32)AWG
ÄÜ´öÅÍ ÀçÁú:
TC - Tinned Copper Conductor
Àý¿¬Ã¼ ÀçÁú: PE – Polyethylene Insulation
»ö»ó ÄÚµå: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe

½¯µå ŸÀÔ:
Tape 1)
Àüü º§µåÈ£ÀÏ(Beldfoil?) Â÷Æó(Â÷ÆóÀ²: 100%)
Braid 2)
ÁÖ¼®µµ±Ý ÆíÁ¶Â÷Æó(Â÷ÆóÀ²: 65%)
µå·¹ÀοÍÀ̾î: 24 AWG (7x32) , TC
¿ÜÇÇ ÀçÁú: PVC - Polyvinyl Chloride

»ç¿ëȯ°æ:
BELDEN 9829, RS-232, RS-422, 4-20mA, Low Voltage Digital Control (24V), DMX-512(Á¶¸íÁ¦¾î) Àü¿ë

Ç¥ÁØ ¹× ÁؼöÇ׸ñ:
UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
Operating  Temperature: -30¡ÆC to +80¡ÆC
Environmental Suitability: Indoor
Flammability / Fire Resistance: UL1685 UL Loading, FT1, IEC 60332-1-2
NEC / UL Compliance: Article 800, CM
AWM Compliance: 2919
CEC / C(UL) Compliance: CM
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
