BELDEN 9842 2Pr x 24(7x32)AWG EIA RS-485, DMX 512, UL AWM 2919
 ۾ : T.744-0909
ȸ : 80
   http://www.beldenkorea.com/pdf/usa/5.26-5.32.PDF [15]
   https://catalog.belden.com/techdata/EN/9842_techdata.pdf [13]

BELDEN ̺, AlphaWire Ŀ̾ ѱ ̺ ܢ

T.02-744-0909   M.010-9228-7710  ( )



BELDEN  9842- RS-485, (2 pr) 24 AWG (7x32) TC, PE/PVC, Foil+TC Braid Shld, CM, 120

Plenum Number: 82842



Color Code : 060 (Chrome)

Product Length:

BELDEN 9842 060100FT (30M)

BELDEN 9842 060500FT (150M)

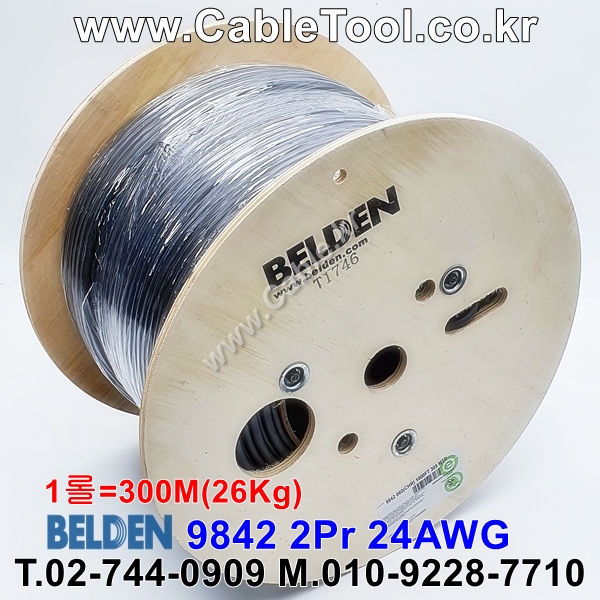

BELDEN 9842 0601000FT (300M)

BELDEN 9842 0602000FT (600M)

BELDEN 9842 0603200FT (1,000M)

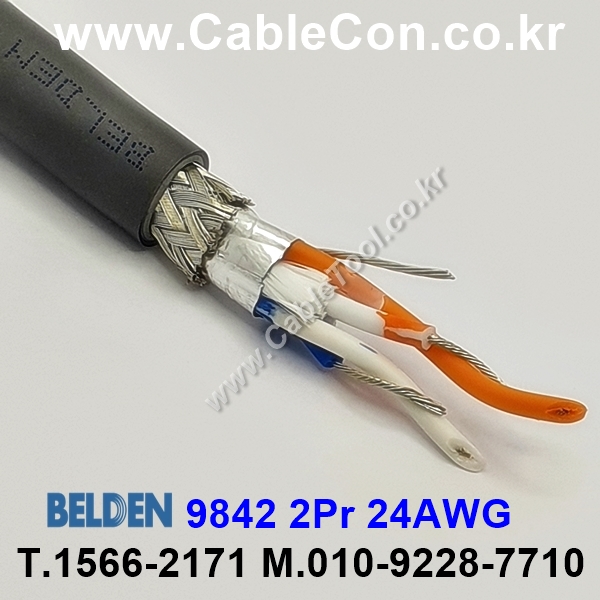

Two 24 AWG pairs stranded (7x32) tinned copper conductors

Polyethylene insulation

Twisted pairs, overall Beldfoil (100% coverage) + tinned copper braid shield (90% coverage)

24 AWG stranded tinned copper drain wire

PVC jacket.


Standards

NEC Articles: 800

NEC/(UL) Specification: CM

CEC/C(UL) Specification: CM

UL AWM Style: 2919 (30 V 80C)

CPR Euroclass: Eca


Suitability

Suitability - Indoor: Yes


Flammability

ISO/IEC Flammability: 60332-1-2
