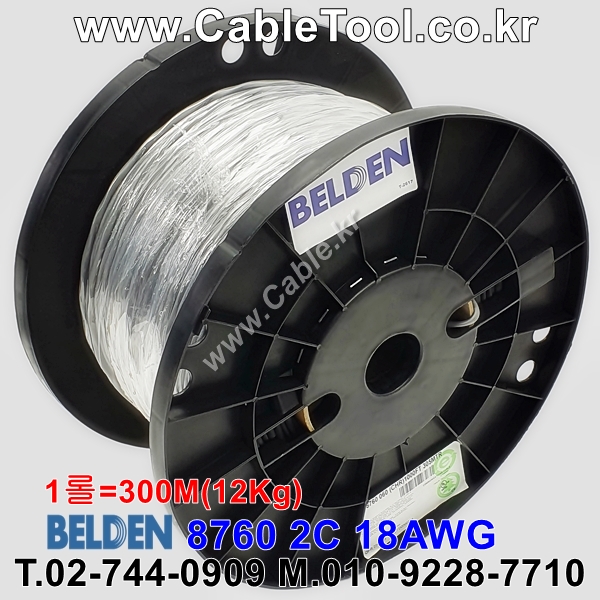

BELDEN 8760 1P x 18(16x30)AWG , Analog Audio Cable, Beldfoil Shield, PVC Jacket, CM, UL AWM 2092
 ۾ : T.744-0909
ȸ : 658
   http://www.beldenkorea.com/pdf/usa/5.16-5.22.PDF [194]
   https://catalog.belden.com/techdata/EN/8760_techdata.pdf [178]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

īٷα ٷΰ: http://www.Cable.kr
Belden θ ٷΰ: http://Belden.kr

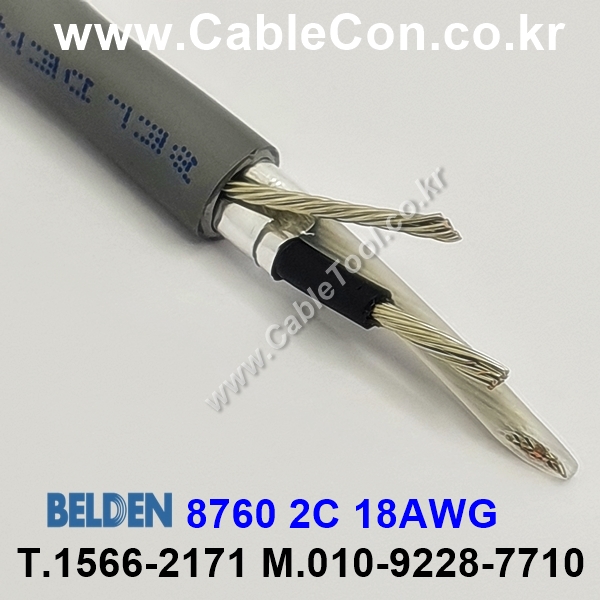

BELDEN 8760,
Analog Audio Cable, Beldfoil Shield, PVC Jacket, CM, UL AWM 2092
: 1P x 18(16x30)AWG
ܴ :
TC - Tinned Copper Conductor
ü : PE – Polyethylene Insulation
ڵ: Black & Clear

Ÿ:
Tape)
ü ȣ(Beldfoil) (: 100%)
巹ο̾: 20 AWG (7x28), TC
: PVC - Polyvinyl Chloride

ȯ:
Ƴα , η ̺, 4-20mA, Digital Control(24v) ̺

ǥ ؼ׸:
UL Voltage Rating: 300 V (CM)
Operating  Temperature: -20C to +60C
Environmental Suitability: Indoor
Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
NEC / UL Compliance: Article 800, CM
AWM Compliance: 2092
CEC / C(UL) Compliance: CM
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
