BELDEN 8761 1Pr x 22(7x30)AWG, UL 2092, CM, FT1, IEC 60332-1-2
 ۾ : T.744-0909
ȸ : 555
   http://www.beldenkorea.com/pdf/usa/5.16-5.22.PDF [129]
   https://catalog.belden.com/techdata/EN/8761_techdata.pdf [134]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)


Audio(Line  Level  Analog  Audio), Control & Instrumentation Cable

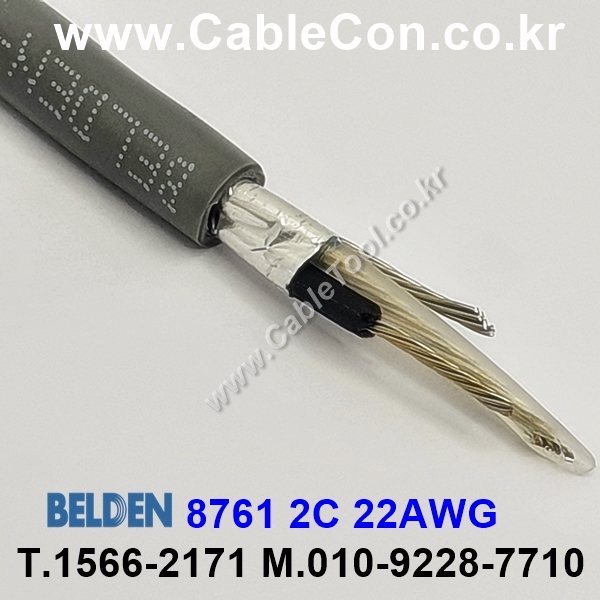

BELDEN  8761  1Pr x 22(7x30)AWG

Plenum Number: 88761, 87761, 82761



Color Code: 060(Chrome = Gray)

Length: 500ft, 1000ft, 2000ft, 150M, 300M, 600M



2 Conductor 22AWG (7x30) Tinned Copper

PO Insulation

Overall Beldfoil Shield

PVC Outer Jacket, CM



Standards

NEC Articles: 800

NEC/(UL) Specification: CM

CEC/C(UL) Specification: CM

UL AWM Style: UL Style 2092 (300 V 60C)

CPR Euroclass: Eca


Suitability

Suitability - Indoor: Yes


Flammability

UL Flammability: UL1685 UL Loading

CSA Flammability: FT1

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS (UL AWM Style 2092)
