BELDEN 8471 2C x 16(19x29)AWG, , UL AWM 2598, CL3, CMG, FT4, IEC 60332-1-2
 ۾ : T.744-0909
ȸ : 51
   http://www.beldenkorea.com/pdf/usa/5.4-5.9.PDF [16]
   https://catalog.belden.com/techdata/EN/8471_techdata.pdf [10]

BELDEN ̺, AlphaWire Ŀ̾ ѱ ̺ ܢ

T.02-744-0909 ()  M.010-9228-7710  ( )

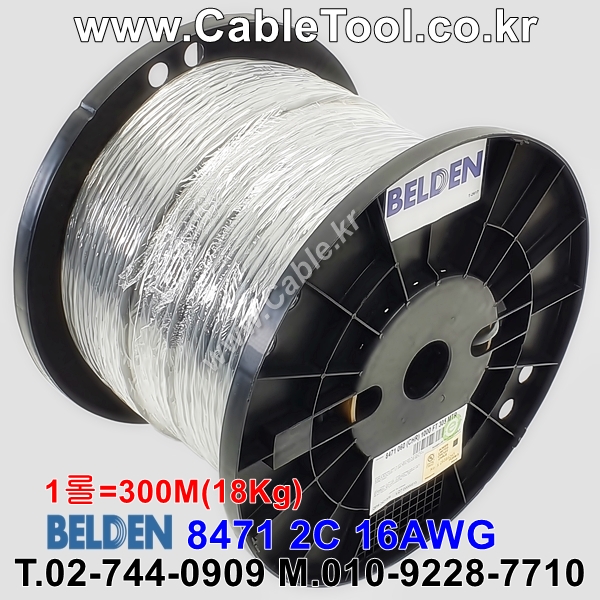

BELDEN  8471 Audio (Speaker), Control & Instrumentation Cable



Color Code: 060 (Chrome)

Length: 500ft, 1000ft, 1640ft, 3280ft, 150M, 300M, 500M, 1000M



Electronic

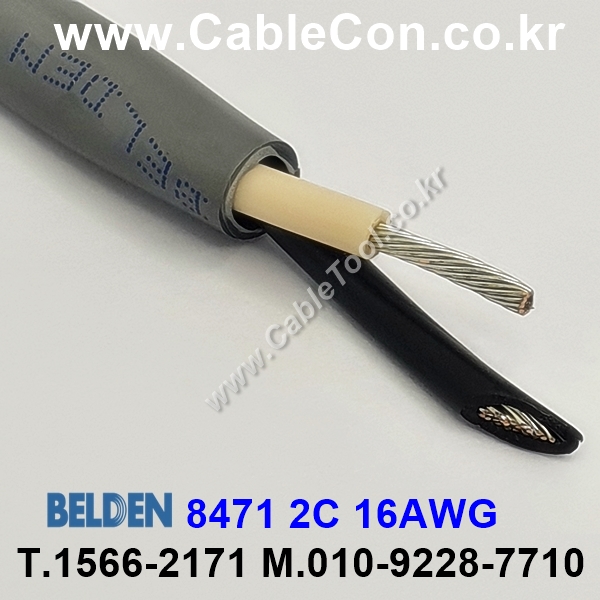

2 Conductor 16AWG (19x29) Tinned Copper

PVC Insulation

PVC Outer Jacket



Standards

NEC Articles: 800, 725

NEC/(UL) Specification: CL3, CMG

CEC/C(UL) Specification: CMG

UL AWM Style: UL Style 2598 (300 V 60C)

CPR Euroclass: Eca


Suitability

Suitability - Indoor: Yes


Flammability

UL Flammability: UL1685 FT4 Loading

CSA Flammability: FT4

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS
