BELDEN 9729 2Pr x 24(7x32)AWG , UL AWM 2919, EIA RS-232/422, DMX512, Digital Audio(2Channel), Encoder Cable
 ۾ : T.744-0909
ȸ : 52
   http://www.beldenkorea.com/pdf/usa/5.35-5.36.PDF [9]
   https://catalog.belden.com/techdata/EN/9729_techdata.pdf [7]

BELDEN ̺, AlphaWire Ŀ̾ ѱ ̺ ܢ

T.02-744-0909 ()  M.010-9228-7710  ( )


BELDEN 9729 - CM, UL AWM 2919, EIA RS-232/422, Digital Audio, Encoder Cable

Plenum Number:  BELDEN 89729, BELDEN 82729


Color Code: 060 (Chrome)

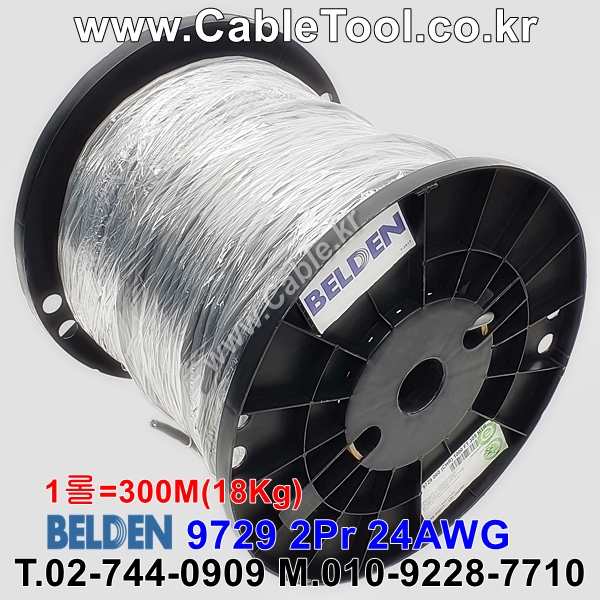

Length: 500ft, 1000ft, 5000ft, 150M, 300M, 1500M


Application

EIA RS-232/422, DMX512, Digital(2Ch) Audio Cable, Encoder Cable

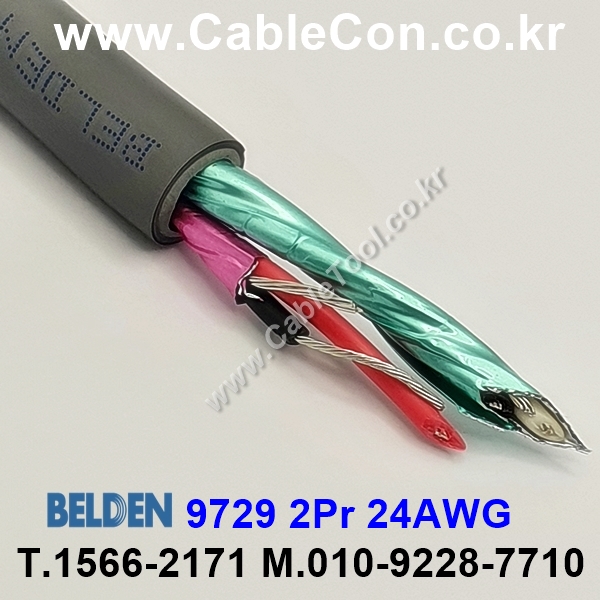

2Pr x 24 AWG stranded (7x32) tinned copper conductors

Datalene insulation

Twisted pairs Individually Beldfoil shielded (100% coverage)

each with 24 AWG stranded tinned copper drain wire

Overall PVC jacket


Standards

NEC Articles: 800

NEC/(UL) Specification: CM

CEC/C(UL) Specification: CM

UL AWM Style: 2919 (30 V 80C)

CPR Euroclass: Eca


Flammability

UL Flammability: UL1685 UL Loading

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS
