BELDEN 8306 6Pr x 22(7x30)AWG , EIA RS-232, UL AWM 2464, CMG, FT4
 ۾ : T.744-0909
ȸ : 210
   http://www.beldenkorea.com/pdf/usa/5.26-5.32.PDF [47]
   https://catalog.belden.com/techdata/EN/8306_techdata.pdf [47]

BELDEN ̺, AlphaWire Ŀ̾ ѱ ̺ ܢ T.02-744-0909()



û,, 010-3732-ĥĥϰ   010-6377-ĥĥϰ    010-9223-ĥĥϰ



  010-9228-7710   Belden010-6612-ĥĥϰ   010-3141-ĥĥϰ

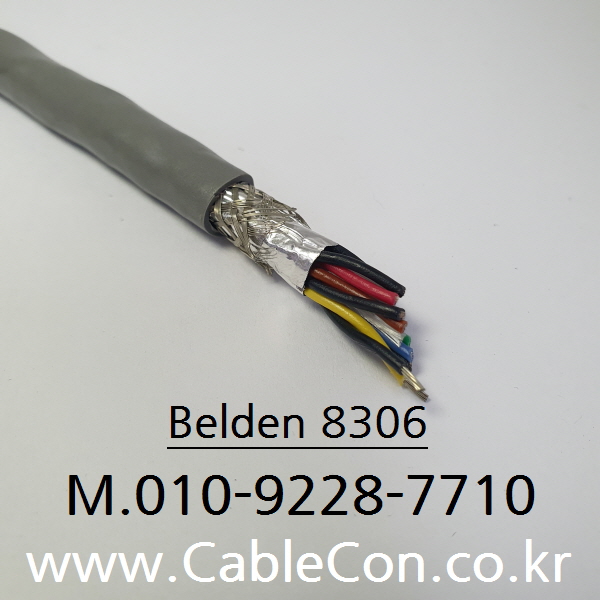

BELDEN 8306- EIA RS232, UL AWM 2464, CMG, FT4


Color Code: 060 (Chrome)


Length: 100ft, 500ft, 1000ft, 30M, 150M, 300M



6Pr x 22(7x30)AWG stranded (7x30) tinned copper conductors


Semi-rigid PVC insulation, twisted pairs


Overall Beldfoil (100% coverage) + tinned copper braid shield (65% coverage)


PVC jacket.



Standards


NEC/(UL) Specification: CMG


CEC/C(UL) Specification: CMG


UL AWM Style: 2464 (300 V 80C)


CPR Euroclass: Eca



Flammability


CSA Flammability: FT4


ISO/IEC Flammability: IEC 60332-1-2


UL voltage rating: 300 V RMS
