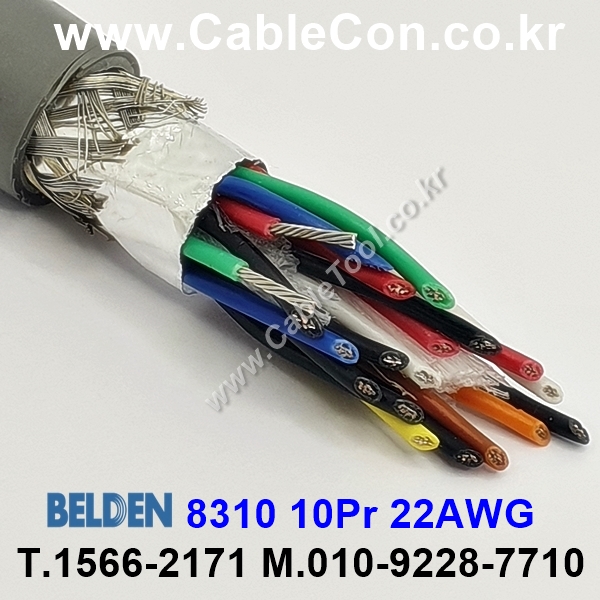

BELDEN  8310 – Computer EIA RS-422 Cable,
Color Code: 060 (Chrome)
Length: 500ft, 1000ft, 150M, 300M

Application:
RS-422, UL AWM 2464

Physical Characteristics (Overall)
Conductor: 10Pr x 22(7x30)AWG, TC - Tinned Copper
Insulation: S-R PVC - Semi-Rigid Polyvinyl Chloride
Color Chart:
Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue

Shield:
Tape 1) Beldfoil(Alum / Poly )/ Coverage: 100 %
Braid 2) TC-Tinned Copper / Coverage: 65 %
Drain Wire: N/A
Jacket: PVC-Polyvinyl Chloride

Standards and Compliance
Environmental Suitability: Indoor

Flammability / Fire Resistance: FT4, IEC 60332-1-2

NEC / UL Compliance: CMG

AWM Compliance: 2464

CEC / C(UL) Compliance: CMG

CPR Euroclass: Eca

European Directive Compliance:
EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)

APAC Compliance: China RoHS II (GB/T 26572-2011)
