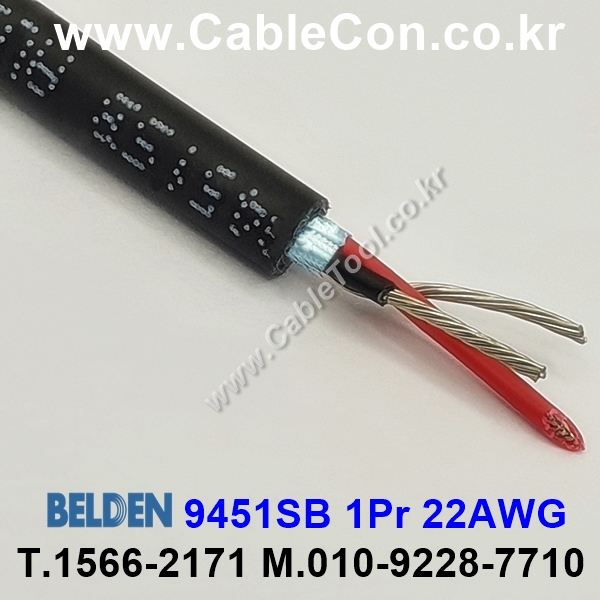

BELDEN 9451SB, Analog Audio Cable, ABS선급인증, Beldfoil? Shield, LSZH Jacket, CMG-LS
선재: 1P x 22(7x30)AWG
콘덕터 재질: TC - Tinned Copper Conductor
절연체 재질: PP - Polypropylene Insulation
색상 코드: Black & Red

쉴드 타입:
Tape) 전체 Bonded 벨드호일(Beldfoil?) 차폐(차폐율: 100%)
드레인와이어: 22 AWG (7x30) , TC
외피 재질: LSZH - Low Smoke Zero Halogen (Flame Retardant) Jacket

사용환경:
BELDEN 9451SB, 선박 및 해양 구조물내 아날로그 오디오, 라인레벨 케이블, 4-20mA 시그널 케이블 등

표준 및 준수항목:
UL Voltage Rating: 300 V (CMG-LS)
Operating Temperature: -30°C to +105°C
Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Fire Resistance: UL1685 (FT4 Loading), Limited Smoke, FT4, 1202, 60332-1^60332-3-22 (Category A)
NEC / UL Compliance: Article 800, CMG-LS
CEC / C(UL) Compliance: CMG-LS
IEEE Compliance: Std. 45 clause 23
Marine Compliance: ABS Type Approval Certificate 05-HS500072B
CPR Euroclass: Fca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II),
EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
