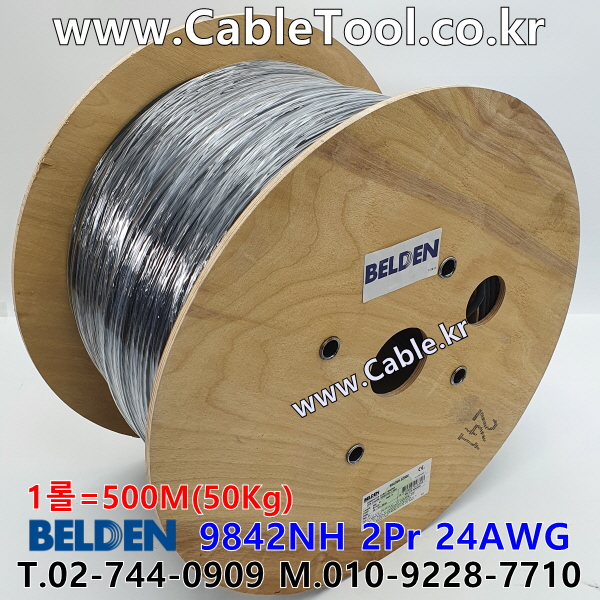

BELDEN 9842NH, RS-485, DMX512, LSZH Outer Jacket, CPR Dca
선재: 2P x 24(7x32)AWG
콘덕터 재질: TC - Tinned Copper Conductor
절연체 재질: PE – Polyethylene Insulation
색상 코드: 1)White/Blue, 2)Blue/White, 3)White/Orange, 4)Orange/White

쉴드 타입: 전체 벨드호일+주석도금 편조 차폐(Overall Beldfoil? +TC Braid Shield)
Tape 1) Bi-Laminate (Alum+Poly) / 차폐율: 100%
Braid 2) Tinned Copper (TC) / 차폐율: 90%
드레인와이어: 24 AWG (7x32), TC

외피(Outer Jacket) 재질: LSZH - Low Smoke Zero Halogen (Flame Retardant)

사용환경:
BELDEN 9842NH, RS-485, POS; Computer communications;
Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …);
Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising
of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

표준 및 준수항목:
Voltage Rating: 300 V
Installation Temp Range: -15°C To +80°C

Storage Temp Range: -45°C To +80°C

Operating Temp Range: -20°C To +80°C

Operating Temp Range (Flexible Install): -15°C To +80°C

Operating Temp Range (Fixed Install): -45°C To +80°C
Oil Resistance: IEC 60811-404
CPR Euroclass: Dca-s2,d2,a1

CENELEC Compliance: EN 50290-2-27
Environmental Space: Indoor - Euroclass Dca

EU Directive Compliance: EU Directive 2003/11/EC (BFR)

EU CE Mark: Yes

EU RoHS Compliance Date (yyyy-mm-dd): 2012-05-10

MII Order #39 (China RoHS): Yes
Suitability - Indoor: Yes

Suitability - Non-Halogenated: Yes
