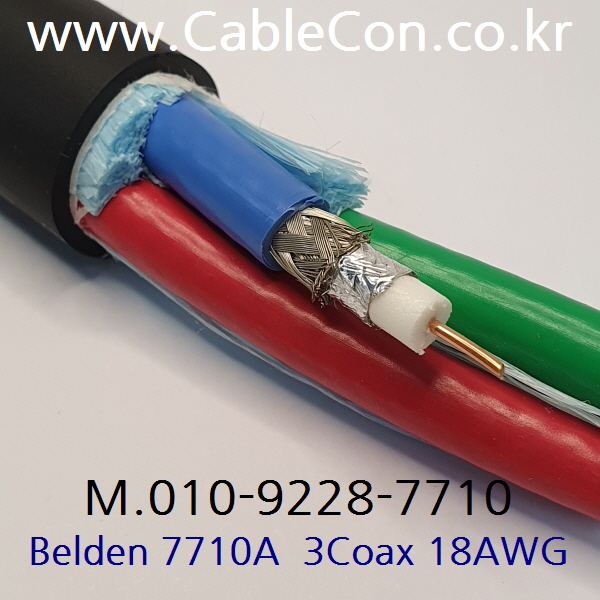

BELDEN 7710A, 75옴, RG6, VideoFLEX? Digital Coax Snake Cable, PVC Jkt CMR
선재: 3Coax x 18(Solid)AWG
콘덕터 재질: BC - Bare Copper
절연체 재질: PE - Polyethylene (Foam)
색상코드: Red, Green, Blue

내부(Inner) 쉴드 타입: 호일+주석도금 편조(Duofoil?+ TC Braid)
Tape 1) Tri-Laminate (Alum+Poly+Alum) / 차폐율: 100%
Braid 2) Tinned Copper (TC) / 차폐율: 95%
내피 재질: PVC - Polyvinyl Chloride

외부(Outer) 쉴드 타입: No Shield
외피(Outer Jacket) 재질: PVC - Polyvinyl Chloride

사용환경:
Belden 7710A, RG6 (1694A Bundled), SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p, SDI/HDTV Digital Video, High Definition (HD), Standard Definition (SDI)

표준 및 준수항목:
RG Type: 6/U Type
Nom. Impedence: 75 Ohm
Voltage Rating: 300 V RMS
Operating Temperature: -40°C to +75°C
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG
UL AWM Style Compliance: UL Style 1354 (each coax); UL Style 2688 (overall)
Environmental Space: Indoor, Outdoor(Black Only)
EU CE Mark: No
European Directive Compliance: EU Directive 2000/53/EC (ELV),
EU Directive 2003/11/EC (BFR), EU Directive 2011/65/EU (ROHS II),
EU Directive 2012/19/EC (WEEE), EU Directive 2015/863/EU,
EU RoHS Compliance Date (mm/dd/yyyy): 2004-01-01
MII Order #39 (China RoHS): Yes
UL Flammability: UL1666 Vertical Shaft
