BELDEN 86262, 93 Ohm, RG62/U Type, 고온용(200°C), FEP jkt.,CMP
선재: 1C x 22(Solid)AWG
콘덕터 재질: BCCS - Bare Copper Covered Steel
절연체 재질: FFEP - Foam Fluorinated Ethylene Propylene

쉴드 타입: 구리 편조(Bare Copper Braid) 차폐 / 차폐율: 94%
외피 재질: FEP - Fluorinated Ethylene Propylene

사용환경:
Belden 86262, 93옴, 컴퓨터 또는 계장용 케이블

표준 및 준수항목:
RG Type: RG62
Nom. Impedence: 93 Ohm
Voltage Rating: 300 V
Operating Temperature: -70°C To +200°C
Environmental Suitability: Indoor, Outdoor, Burial
Flammability / Fire Resistance: NFPA 262 (UL), FT6 (CSA)
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
EU CE Mark: No
European Directive Compliance: EU Directive 2011/65/EU (ROHS II),
EU Directive 2000/53/EC (ELV), EU Directive 2002/95/EC (RoHS),
EU Directive 2002/96/EC (WEEE), EU Directive 2003/11/EC (BFR),
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

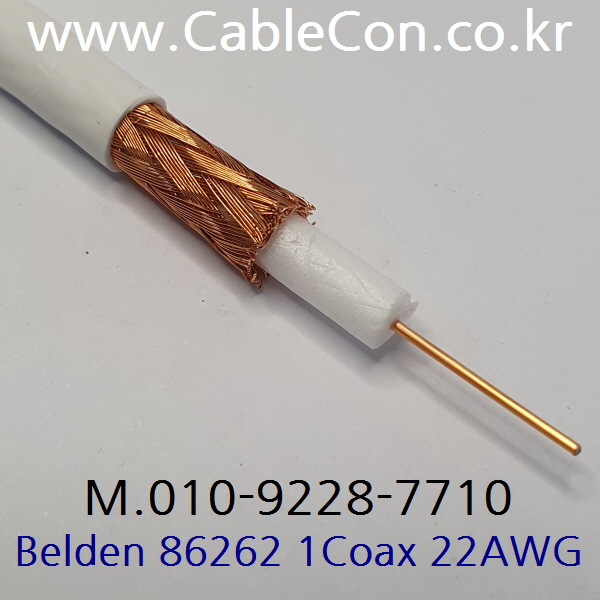

www.cablecon.co.kr  BELDEN 86262 사진 www.cable.kr  Belden 카다로그
