RG6/U º§µ§ 3132A 75 Ohm 1C 18AWG BELDEN
 ±Û¾´ÀÌ : T.744-0909
Á¶È¸ : 7,549
   http://www.beldenkorea.com/pdf/usa/6.84%20Belden%20USA.pdf [999]
   https://catalog.belden.com/techdata/EN/3132A_techdata.pdf [965]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±â:  www.cable.kr
BELDEN
¼îÇθô ¹Ù·Î°¡±â:  www.cabletool.kr


BELDEN º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄܢߠ& ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)


¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (ÃæûÀü¶ó°æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï
.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±âÀÎõ°­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿ÜÁ¦ÁÖ ¹®ÀÇ)


º§µ§ 3132A BELDEN

RG-6/U Type / ControlBus¢â Quad Shielded Coax

Modicon/Schneider AEG - Modbus II, Remote I/O


µµ  ü  ¼ö:  1 °¡´Ú
¼±½É ±½±â:  18 AWG / ´Ü¼±
µµÃ¼ ¿Ü°æ:  1.01mm
µµÃ¼ ÀçÁú:  °­¼± Ç¥¸é ¼øµ¿ µµ±Ý ó¸®
Àý¿¬ ÀçÁú:  FFEP - Foam Fluorinated Ethylene Propylene
¿ÜÇÇ ÀçÁú:  PVDF - Polyvinylidene fluoride
Â÷Æó ÀçÁú µî·Ï¸í:  Bonded Duofoil?
Â÷Æó ÇüÅÂ:   Duobond? IV 4Áß Â÷Æó(Â÷ÆóÀ² 100%)
Â÷Æó ÀçÁú:  º»µùµÈ ¾Ë·ç¹Ì´½ È£ÀÏ - Æú¸® ¿¡½ºÅ׸£ Å×ÀÌÇÁ-¾Ë·ç¹Ì´½ È£ÀÏ
Àüü ¿Ü°æ:  6.95mm
³­  ¿¬  ¼º(Yes/No):  Yes
³­¿¬ Ç°¹ø:  3131A
Ư¼º ÀÓÇÇ´ø½º:  75 ¿È
»ç¿ë Àü¾Ð:  300 V RMS
Á¦Ç° ¹«°Ô:  1000Ft. - 16.4kg


===============================

Coax: 1
AWG: 18
Stranding: Solid
Conductor Material: BCCS - Bare Copper Covered Steel
Dia.: .040 in.
Insulation Material: FFEP - Foam Fluorinated Ethylene Propylene
Outer Jacket Material: PVDF - Polyvinylidene fluoride
Outer Shield Trade Name: Bonded Duofoil?
Outer Shield Material: Bonded Aluminum Foil-Polyester Tape-Aluminum Foil, AL - Aluminum
RG Type: 6/U
Plenum (Y/N): Yes
Non-Plenum Number: 3131A
Impedance: 75.000 Ohm
Voltage: 300 V RMS

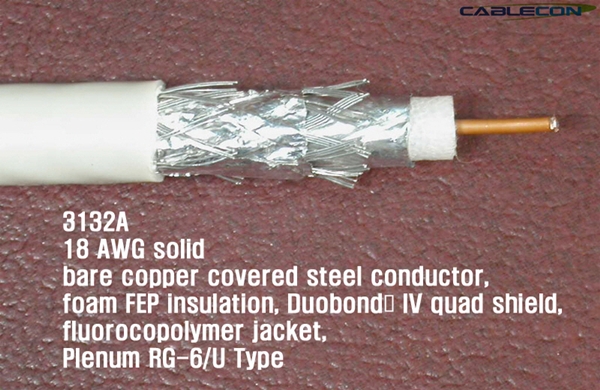

BELDEN 3132A 1Conductor 18AWG  »ùÇú¸µå 4-2-1(R)

======================================================
