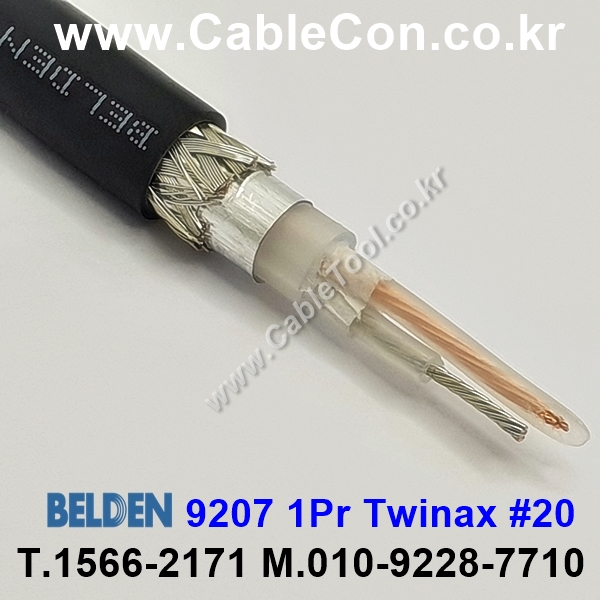

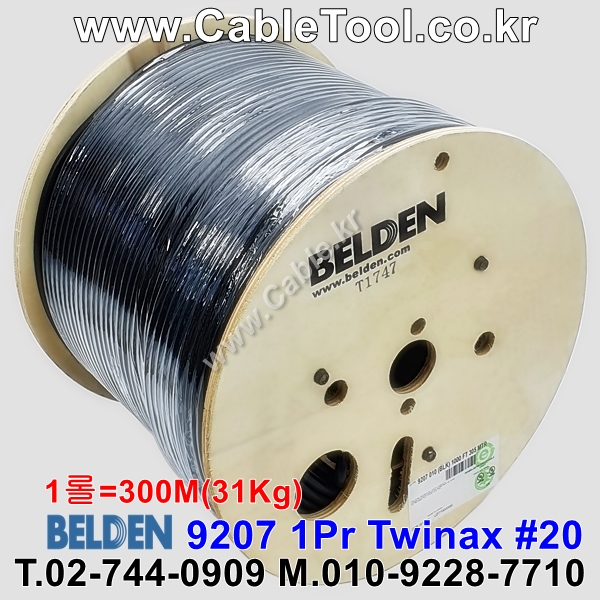

BELDEN 9207, Twinax 100Ω, Duofoil?+TC Braid, PVC Jacket, CL2, CMG

선재: 2C x 20(7x28)AWG
콘덕터 재질:
1C: TC - Tinned Copper Conductor
2C: BC - Bare Copper Conductor
절연체 재질: PE – Polyethylene Insulation
내피 재질: PE – Polyethylene (Inner Jacket)

쉴드 타입:
Tape 1) 전체 Duofoil? / Tri-Laminate (Alum+Poly+Alum) 차폐 (차폐율: 100%)
Braid 2) 주석도금 편조차폐(차폐율: 85%)
외피 재질: PVC - Polyvinyl Chloride (Outer Jacket)

사용환경:
BELDEN 9207,  특성 임피던스 (100옴), Controller Link(Omron), TRNET(Matsushita), MEWNET(Matsushita), I/A Series Fieldbus(Foxboro) 등

표준 및 준수항목:
UL Voltage Rating: 300 V (CMG)
Operating  Temperature: -30°C to +75°C
Environmental Suitability: Indoor/Outdoor, Indoor
Sustainability: CA Prop 65
Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, FT4
NEC / UL Compliance: CL2, CMG
CEC / C(UL) Compliance: CMG
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): IBM P/N 7362211
