RG Mini º§µ§ 1522A 5C 30AWG BELDEN UL1354
 ±Û¾´ÀÌ : T.744-0909
Á¶È¸ : 7,519
   http://www.beldenkorea.com/pdf/usa/6.47%20Belden%20USA.pdf [997]
   https://catalog.belden.com/techdata/EN/1522A_techdata.pdf [1013]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±âwww.Cable.kr
BELDEN 1522A ¼îÇθô ¹Ù·Î°¡±â: www.cabletool.kr/shop/Belden-1522A_belden

BELDEN º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄÜ¢ß & ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)

¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (Ãæû, Àü¶ó, °æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±â, ÀÎõ, °­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿Ü, Á¦ÁÖ ¹®ÀÇ)

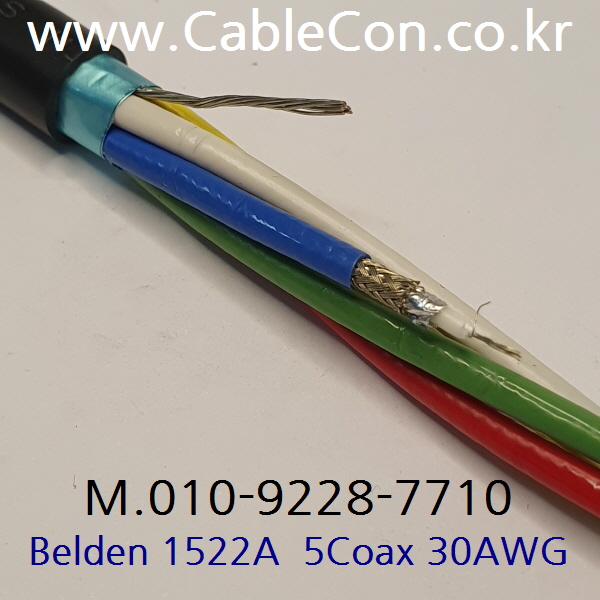

BELDEN 1522A, 75¿È, Bundled RGB Coaxial, Miniature and High-Flex Type, PVC Jkt
¼±Àç: 5Coax x 30(7x38)AWG
ÄÜ´öÅÍ ÀçÁú:
TC - Tinned Copper
Àý¿¬Ã¼ ÀçÁú: PE - Polyethylene (Foam)
»ö»óÄÚµå: Red, Green, Blue, White, Yellow

³»ºÎ(Inner) ½¯µå ŸÀÔ: È£ÀÏ+ÁÖ¼®µµ±Ý ÆíÁ¶(Duofoil?+ TC Braid)
Tape 1) Tri-Laminate (Alum+Poly+Alum) /
Â÷ÆóÀ²: 100%
Braid 2) Tinned Copper (TC) /
Â÷ÆóÀ²: 90%
³»ÇÇ ÀçÁú: PVC - Polyvinyl Chloride

¿ÜºÎ(Outer) ½¯µå ŸÀÔ: Àüü º§µåÈ£ÀÏ(Overall Beldfoil? shield) Â÷Æó
Tape 3) Bi-Laminate (Alum+Poly) /
Â÷ÆóÀ²: 100%
¿ÜÇÇ(Outer Jacket) ÀçÁú: PVC - Polyvinyl Chloride

»ç¿ëȯ°æ:
Belden 1522A, RGB Video, High Flex Type

Ç¥ÁØ ¹× ÁؼöÇ׸ñ:
RG Type: Mini 59
Nom. Impedence: 75 Ohm
Voltage Rating: 30 V RMS (UL AWM Style 1354); 300 V RMS (CL2)
Operating Temperature: -40¡ÆC to +60¡ÆC
NEC/(UL) Compliance: CL2
UL AWM Style Compliance: UL Style 1354 (each coax); UL Style 2688 (overall)
CPR Euroclass: Eca
RG Type: Sub-miniature 59
Environmental Space: Indoor (Not Riser or Plenum)
EU CE Mark: No
European Directive Compliance: EU Directive 2000/53/EC (ELV),
EU Directive 2003/11/EC (BFR), EU Directive 2011/65/EU (ROHS II),
EU Directive 2012/19/EC (WEEE), EU Directive 2015/863/EU,
EU RoHS Compliance Date (mm/dd/yyyy): 2004-01-01
MII Order #39 (China RoHS): Yes
IEC Flammability: IEC 60332-1-2
