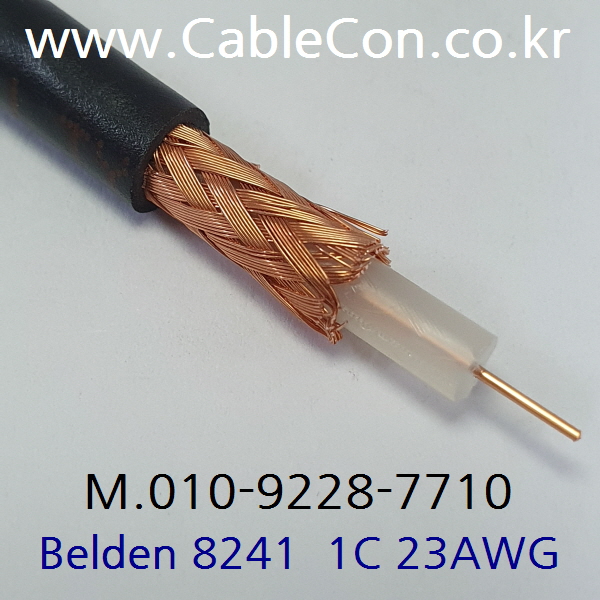

BELDEN 8241, 75 Ohm Analog Video Coax, RG59, PVC Jacket, CM
선재: 1C x 23(Solid)AWG
콘덕터 재질: BCCS - Bare Copper Covered Steel Conductor
절연체 재질: PE – Polyethylene Insulation

쉴드 타입:
Braid 1) Bare Copper (BC) (차폐율: 95%)
외피 재질: PVC - Polyvinyl Chloride Jacket

사용환경:
BELDEN 8241, RG59, Analog Video 용 동축 케이블

표준 및 준수항목:
RG Type: 59
Nom. Impedence: 75 Ohm
UL Voltage Rating: 300 V (CM), 30 V (UL AWM 1354)
Operating Temperature: -30°C to +75°C
Environmental Suitability: Indoor/Outdoor, Indoor
Sustainability: CA Prop 65
Flammability / Fire Resistance: UL1685 UL Loading
NEC / UL Compliance: CM
AWM Compliance: 1354
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU,
EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 88241, 82241
