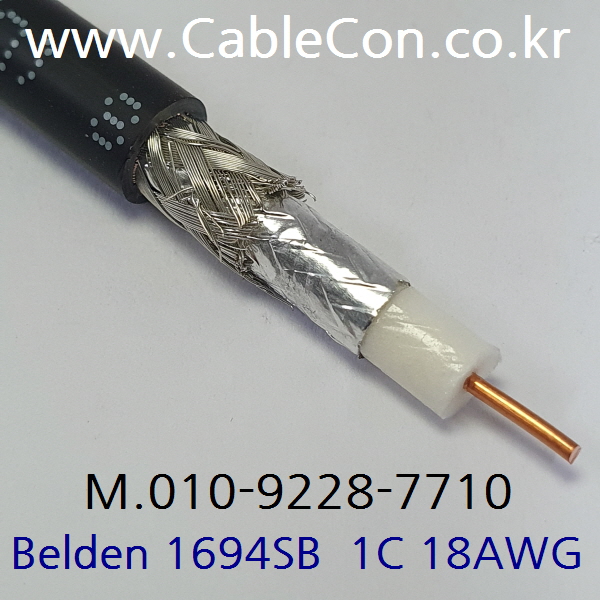

BELDEN 1694SB, 75 Ohm HD-SDI, RG-6, 선급인증(ABS), LSZH Jacket, CMG-LS
선재: 1C x 18(Solid)AWG
콘덕터 재질: BC - Bare Copper Conductor
절연체 재질: PE - Polyethylene (Foam) Insulation

쉴드 타입: Tape 1) Tri-Laminate (Alum+Poly+Alum) (차폐율: 100%
Braid 2) Tinned Copper (TC) (차폐율: 95%)
외피 재질: LSZH - Low Smoke Zero Halogen (Flame Retardant) Jacket

사용환경:
BELDEN 1694SB, RG-6, UHDTV(6Gb/s,전송거리 104M)용 동축 케이블

표준 및 준수항목:
RG Type: 6
Nom. Impedence: 75 Ohm
UL Voltage Rating: 300 V (CMG)
Operating Temperature: -30°C to +75°C
Environmental Suitability: Indoor/Outdoor, Indoor, Sunlight Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance:
UL1685 FT4 Loading, Limited Smoke, FT4, 1202, 60332-1, 60332-3-22 (Category A)
NEC / UL Compliance: CMG-LS
CEC / C(UL) Compliance: CMG-LS
IEEE Compliance: Std. 45 clause 23
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II),
EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): ABS Type Approval Certificate 19-HS1852547
