BELDEN 1694A, 1C x 18(Solid)AWG º§µ§, 75 Ohm HD-SDI, RG-6, PVC Jacket, CMR
 ±Û¾´ÀÌ : »ç¾ç¼­º¸±â
Á¶È¸ : 3,321
   http://www.beldenkorea.com/pdf/usa/19.54%20Belden%20USA.pdf [1210]
   https://catalog.belden.com/techdata/EN/1694A_techdata.pdf [1223]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±âwww.Cable.kr
BELDEN 1694A ¼îÇθô ¹Ù·Î°¡±â: www.cabletool.kr/shop/Belden-1694A_belden

BELDEN º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄÜ¢ß & ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)

¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (Ãæû, Àü¶ó, °æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±â, ÀÎõ, °­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿Ü, Á¦ÁÖ ¹®ÀÇ)

BELDEN 1694A, 75 Ohm HD-SDI, RG-6, PVC Jacket, CMR

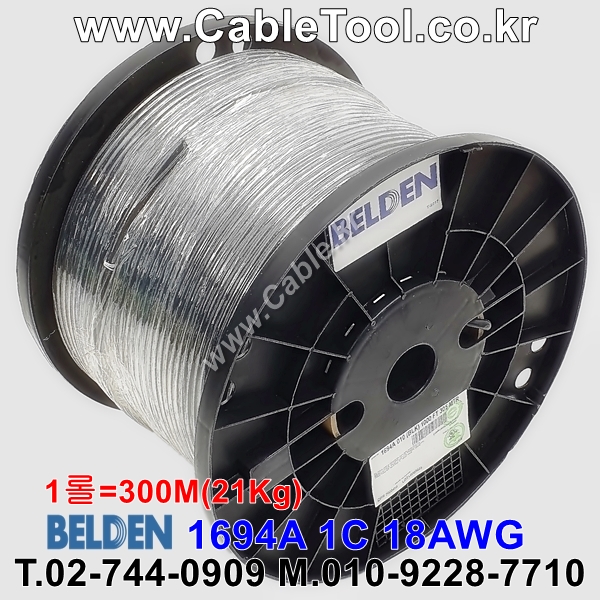

1694A 010500(150M), 1694A 0101640(500M), 1694A 01045000(1,370M)

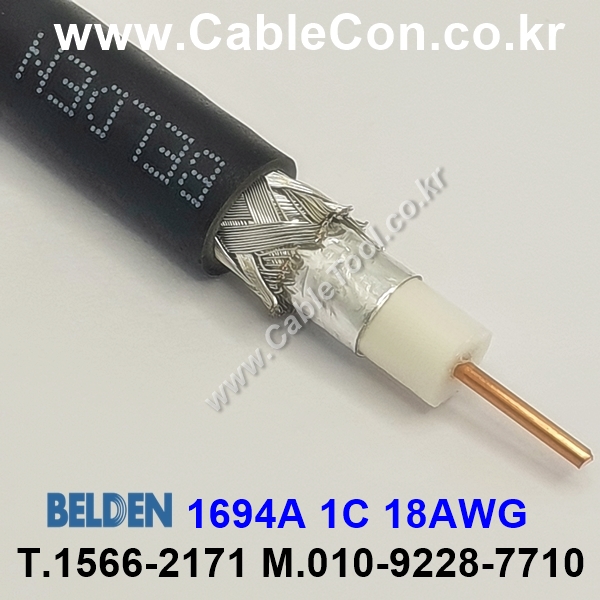

¼±Àç: 1C x 18(Solid)AWG
ÄÜ´öÅÍ ÀçÁú:
BC - Bare Copper Conductor
Àý¿¬Ã¼ ÀçÁú: PE - Polyethylene (Foam) Insulation

½¯µå ŸÀÔ:
Tape 1) Tri-Laminate (Alum+Poly+Alum) (Â÷ÆóÀ²: 100%
Braid 2) Tinned Copper (TC) (
Â÷ÆóÀ²: 95%)

¿ÜÇÇ ÀçÁú: PVC - Polyvinyl Chloride Jacket

»ç¿ëȯ°æ:
BELDEN 1694A, RG-6, UHDTV (6Gb/s,Àü¼Û°Å¸® 104M)¿ë µ¿Ãà ÄÉÀ̺í

Ç¥ÁØ ¹× ÁؼöÇ׸ñ:
RG Type: 6
Nom. Impedence: 75 Ohm
UL Voltage Rating: 300 V (CMR, CMG)
Operating Temperature: -20¡ÆC to +75¡ÆC
Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4
NEC / UL Compliance: CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II),
EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
