RG59/U º§µ§ 88281 75 Ohm 1C 20AWG BELDEN
 ±Û¾´ÀÌ : T.744-0909
Á¶È¸ : 6,811
   http://www.beldenkorea.com/pdf/usa/6.43%20Belden%20USA.pdf [917]
   https://catalog.belden.com/techdata/EN/88281_techdata.pdf [923]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±â:  www.cable.kr
BELDEN
¼îÇθô ¹Ù·Î°¡±â:  www.cabletool.kr


BELDEN º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄܢߠ& ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)


¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (ÃæûÀü¶ó°æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï
.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±âÀÎõ°­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿ÜÁ¦ÁÖ ¹®ÀÇ)


º§µ§ 88281 BELDEN
RG-59/U Type / 75 Ohm Precision Video Cable for Analog and Cable

¿î¿µ ¿Âµµ:  -20¡É To +150¡É
µµ  ü  ¼ö:  1 °¡´Ú
¼±½É ±½±â:  20 AWG / ´Ü¼±
µµÃ¼ ¿Ü°æ:  0.81mm
µµÃ¼ ÀçÁú:  ¼øµ¿
Àý¿¬ ÀçÁú:  FEP - Fluorinated Ethylene Propylene
¿ÜÇÇ ÀçÁú:  PVDF - Polyvinylidene Fluoride
Â÷Æó ÇüÅÂ:  ÁÖ¼® µµ±Ý ó¸®µÈ ±¸¸®/¼øµ¿ 2Áß ÆíÁ¶ Â÷Æó (Â÷ÆóÀ² 98%)
Â÷Æó ÀçÁú:  ÁÖ¼® µµ±Ý ó¸®µÈ ±¸¸®
Àüü ¿Ü°æ:  6.88mm
³­  ¿¬  ¼º(Y/ N): Yes
ºñ³­¿¬ Ç°¹ø:  8281
Ư¼º ÀÓÇÇ´ø½º:  75 ¿È
»ç¿ë Àü¾Ð:  UL: 300 V RMS
                Non-UL: 2900 V RMS
Á¦Ç° ¹«°Ô:  1000Ft. - 39.1kg

===============================

Coax: 1
AWG: 20
Stranding: Solid
Conductor Material: BC - Bare Copper
Dia.: .032 in.
Ins Material: FEP - Fluorinated Ethylene Propylene
Outer Jacket Material: PVDF - Polyvinylidene Fluoride
Outer Shield Material: TC - Tinned Copper
RG Type: 59/U
Plenum (Y/N): Y
Non-Plenum Number: 8281
Impedance: 75 Ohm
Voltage: 300 V RMS
Voltage: 2900 V RMS

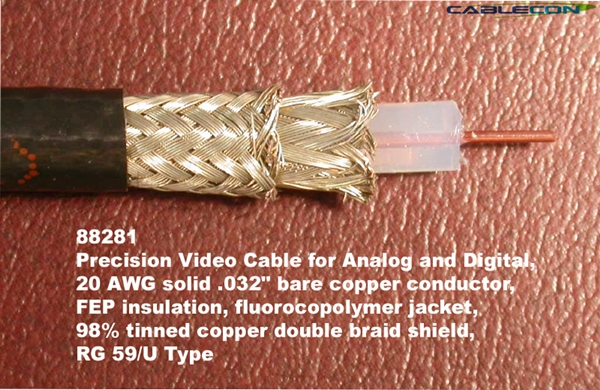

BELDEN 88281 1Conductor 20AWG  »ùÇú¸µå 3-2-3(L)

======================================================
