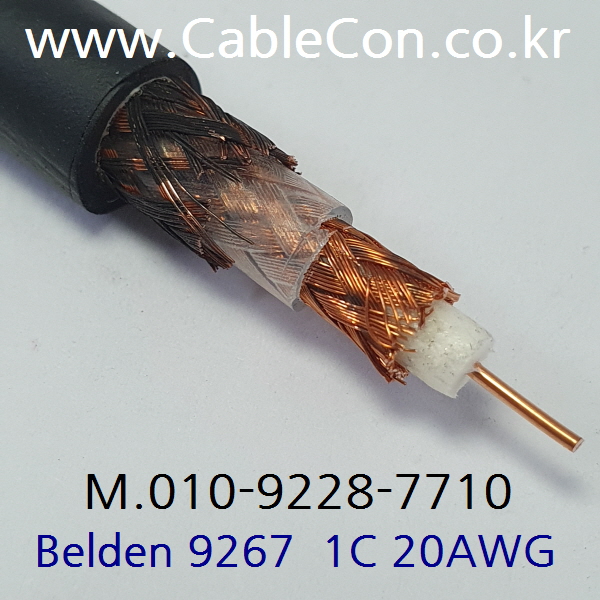

BELDEN 9267, 75 Ohm, Video Triax, RG59, CSPE Jacket
선재: 1C x 20(Solid)AWG
콘덕터 재질: BC - Bare Copper
절연체 재질: PE - Polyethylene (Foam)

Inner 쉴드 타입:
Braid 1) Bare Copper (BC) (차폐율: 80%)
내피 재질: PE – Polyethylene
Outer 쉴드 타입:
Braid 2) Bare Copper (BC) (차폐율: 80%)
Separator Material: Paper Tape
외피 재질: CSPE - Chlorosulphonated Polyethylene

사용환경:
BELDEN 9267, RG59, Camera Cable

표준 및 준수항목:
RG Type: 59/U Type
Nom. Impedence: 75 Ohm
Non UL Voltage Rating: 300 V RMS
Operating Temperature: -20°C to +80°C
Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CPR Euroclass: Eca
MII Order #39 (China RoHS): Yes

벨덴 품번 정보:
BELDEN 9267 010500 (검정색, 150M)
BELDEN 9267 0101000 (검정색, 300M)
BELDEN 9267 0102000 (검정색, 600M)
