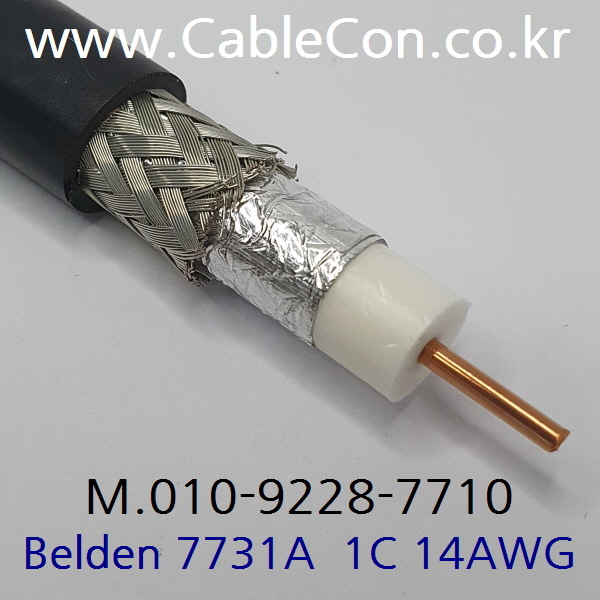

BELDEN 7731A, 75 Ohm HD-SDI, RG-11, PVC Jacket, CMR
선재: 1C x 14(Solid)AWG
콘덕터 재질: BC - Bare Copper Conductor
절연체 재질: PE - Polyethylene (Foam) Insulation

쉴드 타입:

Tape 1) Tri-Laminate (Alum+Poly+Alum) (차폐율: 100%
Braid 2) Tinned Copper (TC) (차폐율: 95%)
외피 재질: PVC - Polyvinyl Chloride Jacket

사용환경:
BELDEN 7731A, RG-11, UHDTV(6Gb/s,전송거리 161M)용 동축 케이블

표준 및 준수항목:
RG Type: 11
Nom. Impedence: 75 Ohm
UL Voltage Rating: 300 V (CMR, CMG)
Operating Temperature: -20°C to +75°C
Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4
NEC / UL Compliance: CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
