BELDEN 7806R, 1C x 19(Solid)AWG , 50 Ohm Wireless Transmission Coax, RF195, RG58, PVC Jacket, CMR, CMG
 ۾ : T.744-0909
ȸ : 810
   http://www.beldenkorea.com/pdf/usa/6.60%20Belden%20USA.pdf [201]
   https://catalog.belden.com/techdata/EN/7806R_techdata.pdf [204]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

īٷα ٷΰ: http://www.Cable.kr
Belden θ ٷΰ: http://Belden.kr

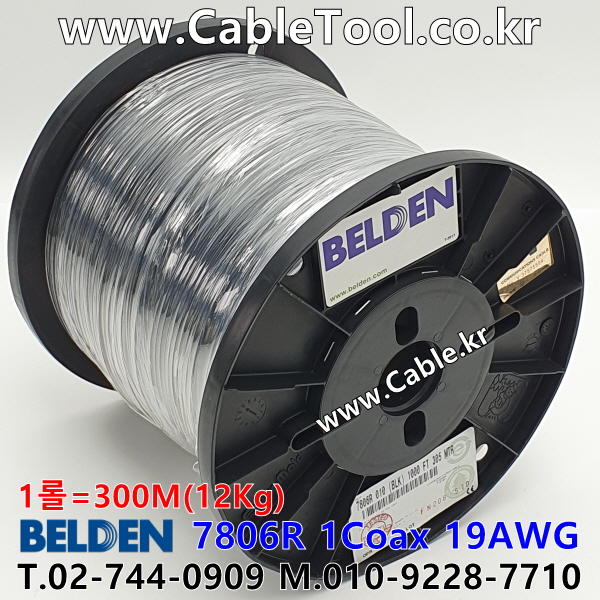

BELDEN 7806R,
50 Ohm Wireless Transmission Coax, RF195, RG58, PVC Jacket, CMR, CMG
: 1C x 19(Solid)AWG
ܴ :
BC - Bare Copper Conductor
ü : PE - Polyethylene (Foam) Insulation

Ÿ:
Tape 1) Foil(Duofoil) Shield(Tri-Laminate) (
: 100%)

Braid 2) Tinned Copper (TC) (: 90%)
: PVC - Polyvinyl Chloride Jacket

ȯ:
׳, ũ, Ƹ߾ , GPS, RFID

ǥ ؼ׸:
RG Type: RG58
Nom. Impedence: 50 Ohm
UL Voltage Rating: 300 V (CMR, CMG)
Operating Temperature: -20C to +75C
Environmental Suitability: Indoor - Riser, Indoor
Sustainability: CA Prop 65
Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4
NEC / UL Compliance: CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
