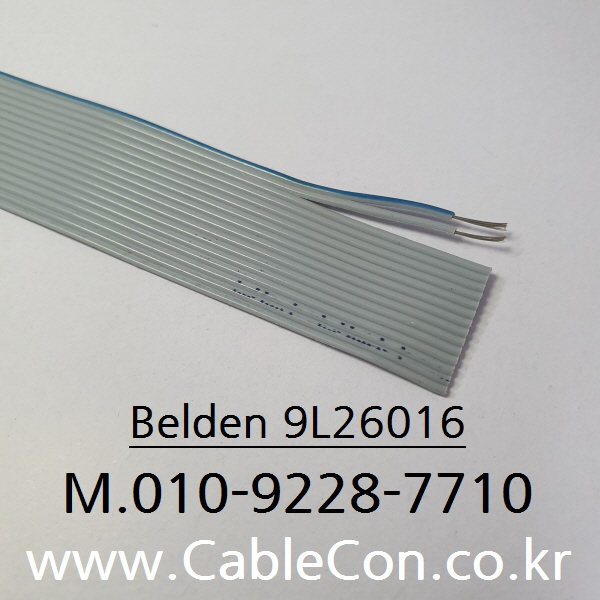

BELDEN  9L26016 - UL AWM 2651, VW-1, Flat Gray Ribbon Cable

Color Code:  Gray with Blue polarity stripe (standard).

Packaging:  H100, H300, R300

Application:  Internal interconnection or internal wiring of electronic equipment.

Physical Specifications

Conductor :  16C x 26(7x34) AWG Tinned Copper

Insulation :  0.010″ Nom. Wall Gray PVC

Pitch :  0.050″ ± .002″

Temperature Rating :  -40 to +105°C

Flammability Rating :  UL: VW-1; CSA: FT1

UL Approval:   File #E12683, Style 2651

CSA Approval:  File #LL7874, CSA AWM I A, 105°C 300V FT1
