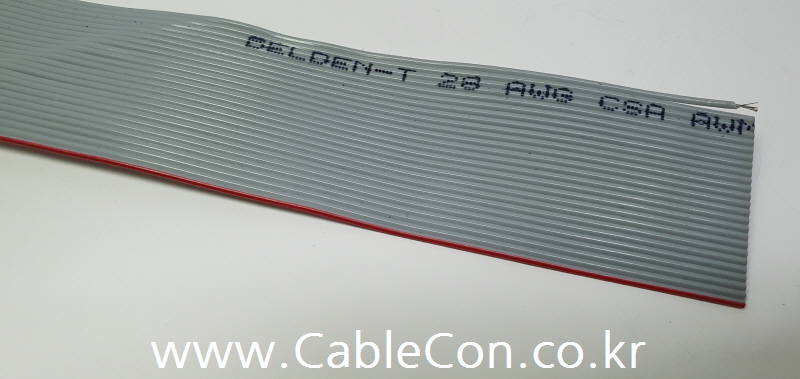

BELDEN  9L28025 - UL AWM 2651, VW-1, Flat Gray Ribbon Cable

Color Code:  Gray with Red polarity stripe (standard).

Packaging : H100, H300, R300

Application:  Internal interconnection or internal wiring of electronic equipment.

Physical Specifications

Conductor : 28 AWG (7x36) Tinned Copper

Insulation:  0 .010″ Nom. Wall Gray PVC

Pitch : 0.050″ ± .002″

Temperature Rating:  -40 to +105°C

Flammability Rating:  UL VW-1,  CSA FT1

UL Approval:  File #E12683, Style 2651

CSA Approval : File #LL7874, CSA AWM I A, 105°C 300V FT1
