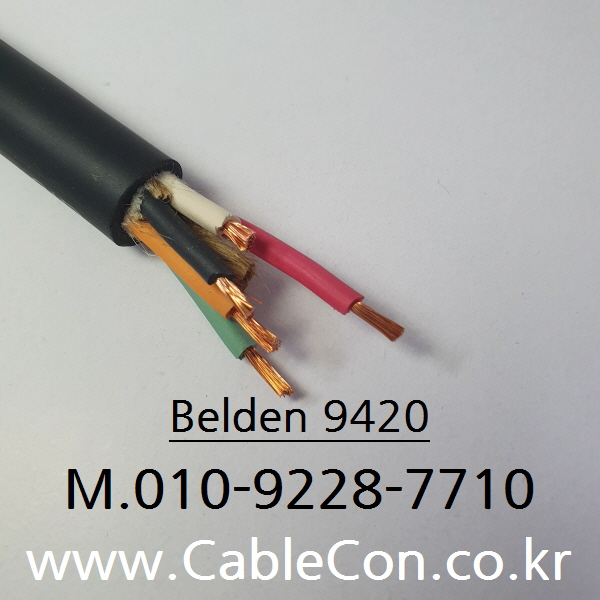

BELDEN  9420 - Oil resistant Applications; to Power Tools and Appliances

Color Code: 010 (Black)

Length: 100ft, 1000ft, 30M, 300M

Application

내유성,전동공구 및 기구용 전원 케이블

Physical Characteristics (Overall)

Conductor: 5C x 16(65x34)AWG, BC - Bare Copper

Insulation: EPDM - Ethylene Propylene Diene Monomer

Color Chart: 1) Green / 2) Red/ 3) Orange / 4) White / 5) Black

Shield: No

Jacket: CPE - Chlorinated Polyethylene (Thermoset)

Standards

NEC/(UL) Specification: SO

CSA AWM Specification: SO Flammability

CSA Flammability: FT2

UL voltage rating: 600 V RMS

_유전체 내전압: 2000 V AC Applied For 1 Min.
