BELDEN 7814A 4P x 24(Solid)AWG , Cat 6(250MHz), Premise Horizontal Cable, U/UTP, PVC Jacket, CM
 ۾ : T.744-0909
ȸ : 733
   http://www.beldenkorea.com/pdf/usa/15.46-15.66.PDF [180]
   http://ecs.beldenapac.com/uploads/soft/ECS%20datasheet/Category%20cabl [60]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

īٷα ٷΰ: http://www.Cable.kr
Belden θ ٷΰ: http://Belden.kr

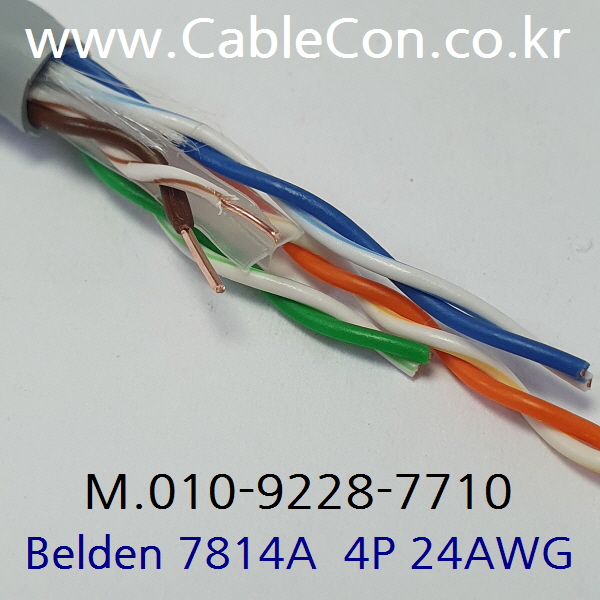

BELDEN 7814A, Cat 6(250MHz),
Premise Horizontal Cable, U/UTP, PVC Jacket, CM
: 4P x 24(Solid)AWG
ܴ :
BC - Bare Copper Conductor
ü : PO – Polyolefin Insulation

Overall Cabling Fillers: Central Spline
Ÿ: Unshielded
: PVC - Polyvinyl Chloride Jacket

ȯ:
ְſ, Gigabit Ethernet,, 100BaseTX, ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite, Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6

ǥ ؼ׸:
Operating  Temperature: -20C to +75C
Environmental Suitability: Indoor
NEC/(UL) Specification: CM
NEC Articles: 800
CEC/C(UL) Specification: CM
IEC Specification: 11801 Category 6
EU RoHS Compliant (Y/N): Y
EU RoHS Compliance Date: Sept 2007
TIA Specification: 568-C.2 Category 6
Other Specification: NEMA WC-63.1 Category 6, UL verified to Category 6
UL Flame Test: UL1685 UL Loading
