BELDEN 10GB24 4P x 23(Solid)AWG , Cat 6A(500MHz), Horizontal and Building Backbone Cable, U/UTP, LSZH Jacket
 ۾ : T.744-0909
ȸ : 536
   http://www.beldenkorea.com/pdf/usa/15.46-15.66.PDF [131]
   https://catalog.belden.com/techdata/EN/10GB24_techdata.pdf [138]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

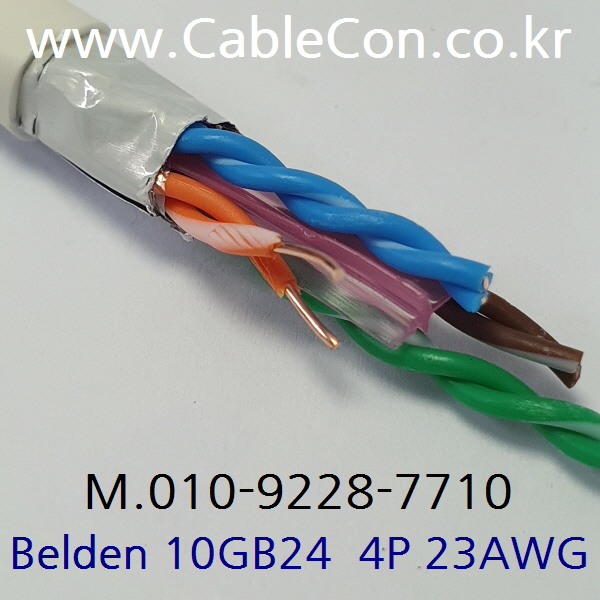

BELDEN 10GB24 - 4Pr x 23(Solid)AWG Cat6A UTP LSZH, Small Diameter 7.2mm

Color Code : 06 (Blue), 08(Gray), 07(Purple), 09(White)

Category 6A (500MHz), 4-Pair, U/UTP, Premise Horizontal Cable

23 AWG Solid Bare Copper Conductors

Polyethylene Insulation

LSZH Jacket



Suitable Applications:

Horizontal and building backbone cable; Support current and future Cat. 6a and 6 applications: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI and ATM



Standards

ISO/IEC Compliance: ISO/IEC 11801 Ed. 2.2:2002/A2:2010/C1:2011

CPR Euroclass: Eca

CENELEC Compliance: EN 50173-1 Ed. 3:2011

Data Category: Category 6A

ANSI Compliance: ANSI/TIA 568.2-D (2018)

IEEE Specification: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4


Suitability

Suitability - Indoor: Yes


Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2

Burning Load: 550 kJ/m

Amount of Halogen acc. to IEC 60754-1 &

EN50267-1: Zero
