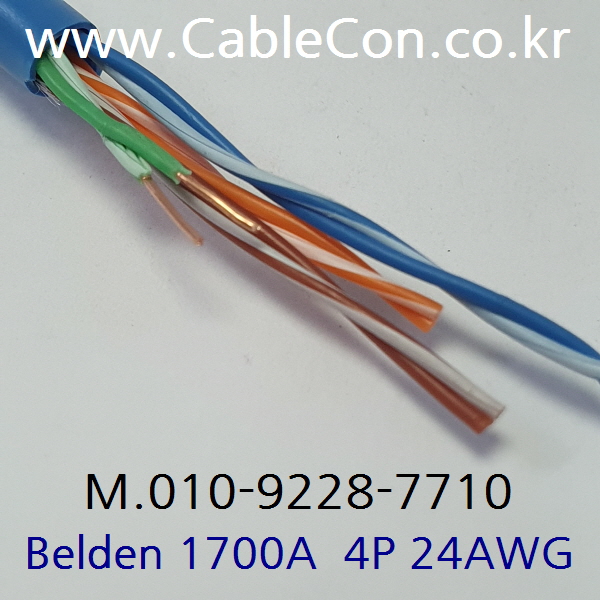

BELDEN 1700A 4Pr x 24(Solid)AWG , CAT5e+ (350MHz), U/UTP, CMR
 ۾ : T.744-0909
ȸ : 206
   http://www.beldenkorea.com/pdf/usa/15.46-15.66.PDF [34]
   https://catalog.belden.com/techdata/EN/1700A_techdata.pdf [31]

BELDEN ̺, AlphaWire Ŀ̾ ѱ ̺ ܢ

T.02-744-0909 ()  M.010-9228-7710  ( )


BELDEN  1700A- CAT5e+ (350MHz), U/UTP, CMR, Premise Horizontal cable

Plenum Number: BELDEN 1701A


4Pr x 24(Solid)AWG bare copper conductors Bonded-Pair,

Polyolefin insulation, ripcord

PVC jacket


Standards

NEC/(UL) Specification: CMR

CEC/C(UL) Specification: CMR

ISO/IEC Compliance: 11801 ed 2.1 (2008) Class D

CPR Euroclass: Eca

Data Category: Category 5e

ANSI Compliance: S-90-661-2012 Category 5e, ANSI/NEMA WC-63.1 Category 5e

Telecommunications Standards: ANSI/TIA-568-C.2 Category 5e

IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3

Third Party Performance Verification: Category 5e


Suitability

Suitability - Indoor: Yes


Flammability

C(UL) Flammability: FT4

UL Flammability: UL 1666 Riser

ISO/IEC Flammability: 60332-1

UL voltage rating: 300 V RMS
