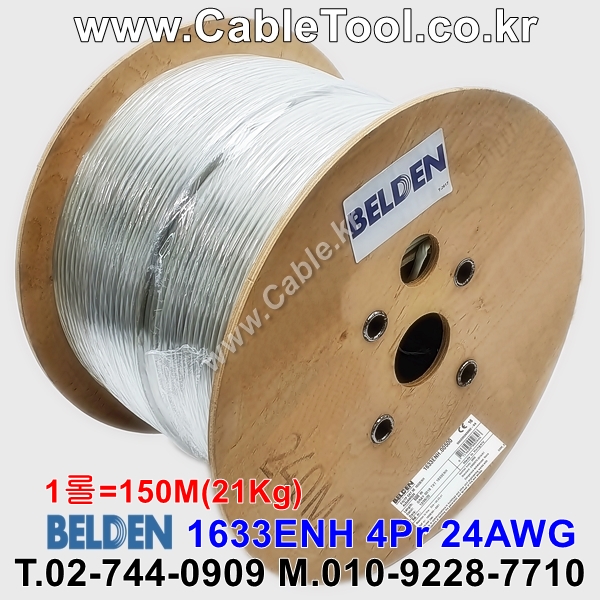

BELDEN 1633ENH 4Pr x 24(Solid)AWG , , Cat 5e, F/UTP, LSZH, Indoor CPR Dca
 ۾ : T.744-0909
ȸ : 117
   http://www.cable.kr/ [26]
   https://catalog.belden.com/techdata/EN/1633ENH_techdata.pdf [25]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

BELDEN  1633ENH – Cat. 5e (100MHz)

Application: Horizontal and building backbone cable; Support current and future Category 5e applications, such as: 1000Base-T (Gigabit Ethernet), 100, Base-T, 10 Base-T, FDDI, ATM

Physical Characteristics (Overall)
Conductor: 4Pr x 24(Solid)AWG, BC - Bare Copper
Insulation: PO – Polyolefin

Color Chart:
1P) White/Blue & Blue
2P) White/Green & Green
3P) White/Orange & Orange
4P) White/Brown & Brown

Shield:
Tape1) Foil (Alum / Poly) / Coverage: 100 %
Drain Wire: Aluminum facing outside in contact with drain wire
Jacket: LSZH - Low Smoke Zero Halogen flame retardant

Nominal Characteristic Impedance: 100 Ohm

Standards:
IEC Compliance: ISO/IEC 11801 Ed. 2.2:2002/A2:2010/C1:2011

CPR Euroclass: Dca-s2,d2,a1

CENELEC Compliance: EN 50173-1 Ed. 3:2011

Data Category: Category 5e

ANSI Compliance: ANSI/TIA 568.2-D (2018)

IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3

Flammability, LS0H, Toxicity Testing:
IEC Flammability: IEC 60332-1-2

Burning Load: 440 kJ/m

IEC 60754-1 (EN50267-1)- Halogen Amount: Zero

IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max.

Conductivity: 2.5 S/mm

IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3

IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min.

Transmittance: IEC 61034-2
