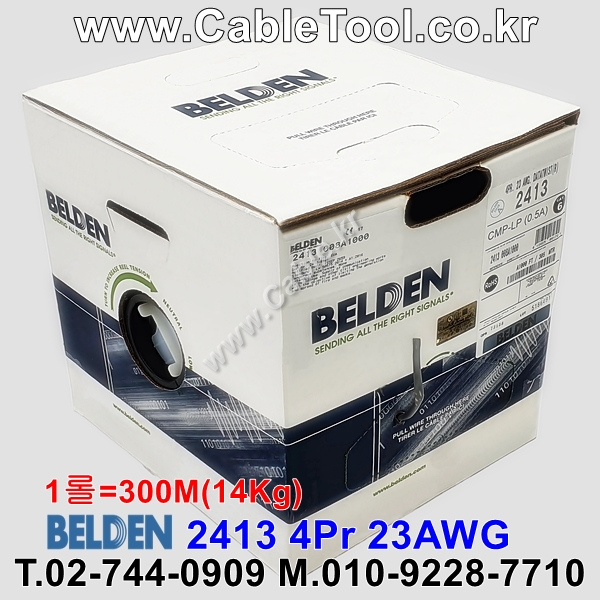

BELDEN 2413 4Pr x 23(Solid)AWG , Cat 6+, U/UTP, NEC Type CMP
 ۾ : T.744-0909
ȸ : 119
   http://www.cable.kr/ [28]
   http://www.cable.kr/ [25]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

BELDEN  2413 – Category 6+ Enhanced Premise Horizontal Cable (350MHz)

Application:
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Physical Characteristics (Overall)
Conductor: 4Pr x 23(Solid)AWG, BC - Bare Copper
Insulation:
PO/FEP - Polyolefin / Fluorinated Ethylene Propylene
Color Chart:
1P) White/Blue Stripe & Blue

2P) White/Orange Stripe & Orange

3P) White/Green Stripe & Green

4P) White/Brown Stripe & Brown

Shield: Un shield
Drain Wire: N/A
Jacket: PVC-LS - Polyvinyl Chloride (Low Smoke)

Standards and Compliance
Environmental Suitability: Plenum, Indoor

Sustainability: Product Lens, Environmental Product Declaration (EPD) Available

Flammability / Fire

Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2

NEC / UL Compliance: 800, CMP;CMP-LP (0.5A);CL3P-LP (0.5A)

CEC / C(UL) Compliance: CMP

ICEA Compliance: S-116-732-2013

IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance: ANSI/NEMA WC-66

Data Category: Category 6

TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6

CPR Euroclass: Eca

European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance: China RoHS II (GB/T 26572-2011)
