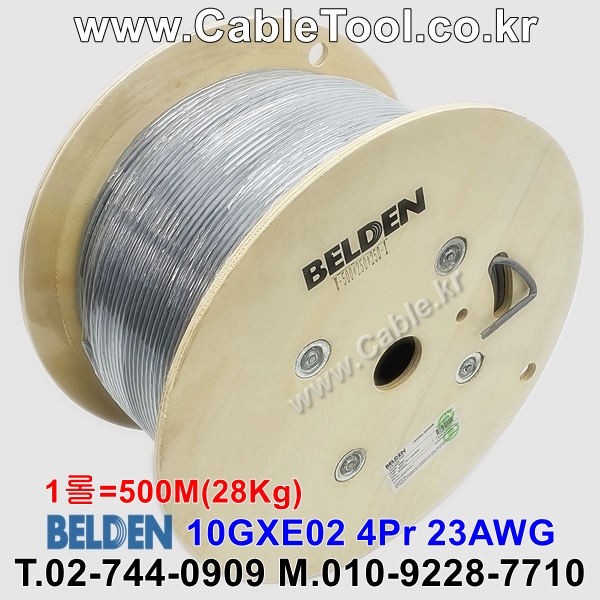

BELDEN 10GXE02 4Pr x 23(Solid)AWG , Cat 6A+(625MHZ), S/FTP, Indoor CPR Eca
 ۾ : T.744-0909
ȸ : 96
   http://www.cable.kr/ [26]
   https://catalog.belden.com/techdata/EN/10GXE02_techdata.pdf [26]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

BELDEN  10GXE02– Cat 6A+(625MHZ), S/FTP, Indoor CPR Eca

Application:
Horizontal and building backbone cable; Support current and future Category 6A and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM

Physical Characteristics (Overall)
Conductor: 4Pr x 23(Solid)AWG, BC - Bare Copper
Insulation: Polyolefin (Foam)
Color Chart:
Pair 1) White & Blue

Pair 2) White & Orange

Pair 3) White & Green

Pair 4) White & Brown

Shield:
Tape 1) Foil Shield(Alum / Poly )/ Coverage: 100 %
Braid 2) TC-Tinned Copper / Coverage: 30 %
Drain Wire: N/A
Jacket: LSZH - Low Smoke Zero Halogen flame retardant

Standards:
IEC Compliance: ISO/IEC 11801 Ed. 2.2:2002/A2:2010/C1:2011

CPR Euroclass: Eca

CENELEC Compliance: EN 50173-1 Ed. 3:2011

Data Category: Category 6A

ANSI Compliance: ANSI/TIA 568.2-D (2018)

IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Applicable Environmental and Other Programs:

Environmental Space: Indoor - Euroclass Eca

EU RoHS Compliance Date (yyyy-mm-dd): 2014-09-29

Flammability, LS0H, Toxicity Testing
IEC Flammability: IEC 60332-1-2

Burning Load: 500 kJ/m

IEC 60754-1 (EN50267-1)- Halogen Amount: Zero

IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount -

Max. Conductivity: 2.5 S/mm

IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount -

Min. pH: 4.3

IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke

Density Min. Transmittance: IEC 61034-2
