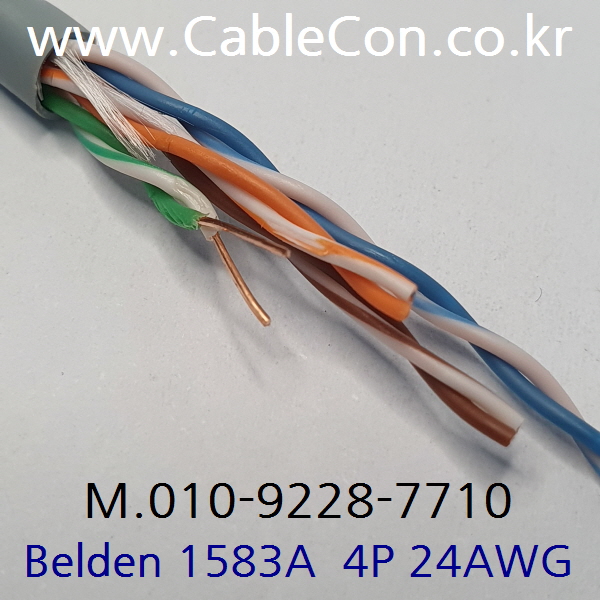

BELDEN 1583A, Cat 5e, Premise Horizontal Cable, U/UTP, PVC Jacket, CMR
선재: 4P x 24(Solid)AWG
콘덕터 재질: BC - Bare Copper Conductor
절연체 재질: PO - Polyolefin  Insulation

쉴드 타입: No Shield
드레인와이어: 해당없음
외피 재질: PVC - Polyvinyl Chloride Jacket

사용환경:
BELDEN 1583A,  주거용, Ethernet 1000BASE-T, PoE++, PoE+, PoE 등

표준 및 준수항목:
UL Voltage Rating: 300 V (CMR)
Operating  Temperature: -20°C to +75°C
Environmental Suitability: Riser, Indoor
Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
NEC / UL Compliance: 800, CMR
CEC / C(UL) Compliance: CMR
ICEA Compliance: S-90-661-2012
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)
