º§µ§ 7804C BELDEN

Composite - SMPTE 311M HDTV Cable

¿î¿µ ¿Âµµ:  -30¡É To +60¡É
µµ  ü  ¼ö:  2 °¡´Ú, 2 °¡´Ú
¼±½É ±½±â:  16, 24 AWG / ¿¬¼± (65x34), (7x32)
µµÃ¼ ¿Ü°æ:  1.29mm, 0.51mm
µµÃ¼ ÀçÁú:  ÁÖ¼® µµ±Ý ó¸®µÈ ±¸¸®
Àý¿¬ ÀçÁú:  PVC - Polyvinyl Chloride
¿ÜÇÇ ÀçÁú:  PVC - Polyvinyl Chloride
Â÷Æó ÀçÁú µî·Ï¸í:  Belflex?
Â÷Æó ÇüÅÂ:  ÁÖ¼® µµ±ÝµÈ ±¸¸® ÆíÁ¶ Â÷Æó (Â÷ÆóÀ² 95%)
Â÷Æó ÀçÁú:  ÁÖ¼® µµ±Ý ó¸®µÈ ±¸¸®
Àüü ¿Ü°æ:  9.19mm
³­  ¿¬  ¼º(Y/ N): No
Á¦Ç° ¹«°Ô:  1000Ft. - 44.9kg


===============================

Ins Material: PVC - Polyvinyl Chloride
Maximum Attenuation @ 1310nm: 45
Number of Fibers: 2Mode
Field Diameter @ 1310nm: 9.5
micronsClad Diameter: 125microns
Breakout Element Diameter: .079
in.Core-clad Concentricity Error: < To 1 Micron
Primary Coating Material: Acrylate
Buffer Tube Diameter: 900 microns
Breakout Element Material: PVC - Polyvinyl Chloride
Buffer Tube Material: PVC - Polyvinyl Chloride
Overall Nominal Diameter: 0 x 0
in.Strength Member Material: Aramid Yarn
Outer Jacket Trade Name: Belflex?
Outer Jacket Material: PVC Blend - Polyvinyl Chlordie Blend
Outer Shield Material: TC - Tinned Copper
Plenum (Y/N): N

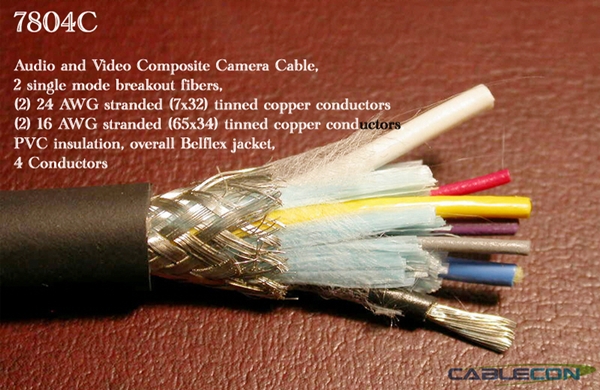

BELDEN 7804C 4Conductor 16,24AWG  »ùÇú¸µå 9-1-4(R)

======================================================
