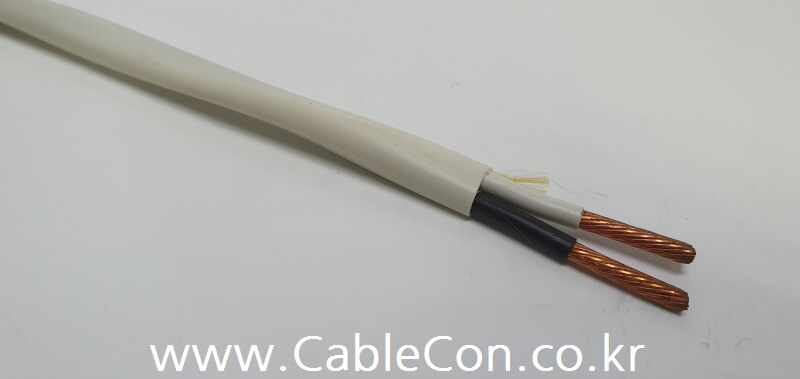

BELDEN  6000UE - Intercom/PA Systems, Sound/Audio Systems

Non-Plenum Number: 5000UE

Color Code: 010 (Black), 012 (Pink), 877 (Natural)

Length: 500ft, 1000ft, 150M, 300M

Physical Characteristics (Overall)

Conductor: 2C x 12(19x25)AWG, Bare Copper

Insulation: PVC-LS - Polyvinyl Chloride (Low Smoke) / Flamarrest?

Color Chart: 1) Black / 2) White

Shield: No Shield

Jacket: PVC-LS - Polyvinyl Chloride (Low Smoke) / Flamarrest?

Standards

NEC Articles: 725

NEC/(UL) Specification: CL2P

CPR Euroclass: Eca

Flammability

UL Flammability: NFPA 262

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 150 V RMS
