Non-Plenum Number: 5000FE

Color Code: 877 (Natural)

Length: 1000ft, 300M

Application

Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

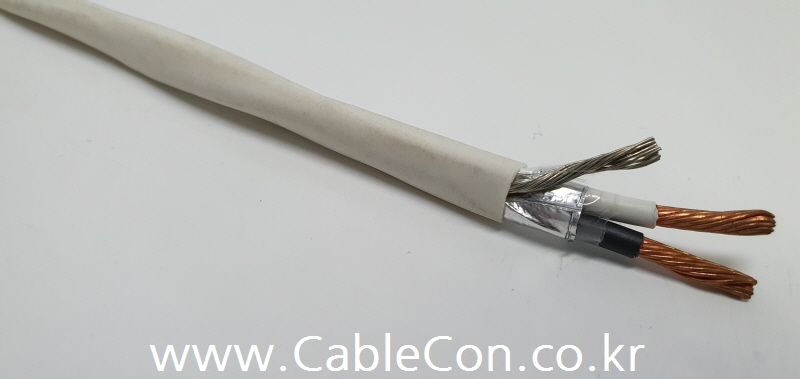

Conductor: 2C x 12(19x25)AWG, Bare Copper

Insulation: PVC-LS - Polyvinyl Chloride (Low Smoke) / Flamarrest?

Color Chart: 1) Black / 2) White

Shield: Overall Beldfoil? shield (Coverage: 100%)

Drainwire: 20(Solid)AWG, TC(Tinned Copper)

Jacket: PVC-LS - Polyvinyl Chloride (Low Smoke) / Flamarrest?

Standards

NEC Articles: 725

NEC/(UL) Specification: CL2P

CPR Euroclass: Eca

UL Flammability: NFPA 262

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 150 V RMS
