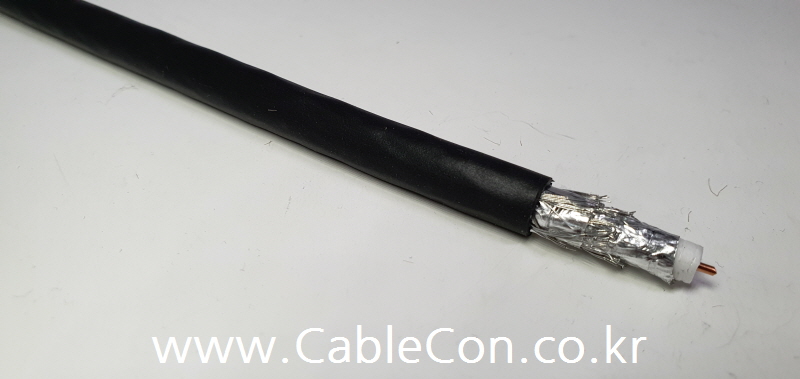

BELDEN  5339Q5 - Surveillance, CATV & MATV Cable,
Plenum Number: 6339Q8
Color Code: 009 (White), 010 (Black)
Length: 500ft, 1000ft, 150M, 300M

Application
Surveillance, CATV & MATV Cable

Physical Characteristics (Overall)

Conductor: Coax: 1C x 18(Solid)AWG, BC - Bare Copper

Insulation: PE - Polyethylene (Foam)

Shield:
Tape 1: Duofoil? (Alum / Poly) / Coverage: 100 %
Braid 2: Aluminum / Coverage:  60 %
Tape 3: Duofoil? (Alum / Poly) / Coverage: 100 %
Braid 4: Aluminum / Coverage:  40 %

Jacket: PVC - Polyvinyl Chloride

Standards
NEC/(UL) Specification: CATV, CM

CEC/C(UL) Specification: CM

CPR Euroclass: Eca

RG Type: 6/U Type

Series Type: Series 6

Flammability
C(UL) Flammability: FT1

UL Flammability: UL1685 UL Loading

ISO/IEC Flammability: IEC 60332-1-2
