BELDEN  5339B5 - Surveillance, CATV & MATV Cable,

Color Code: 009 (White), 010 (Black)

Length: 500ft, 1000ft, 150M, 300M

Construction

Conductor: 1C x 18(Solid)AWG, 040" BC(Bare copper)

Insulation: PE - Polyethylene (Foam)

Tape Shield: Duobond? II (Coverage: 100%)

Braid Shield: Aluminum braid shield (Coverage: 93%)

Jacket: PVC

Standards

NEC/(UL) Specification: CATV, CM

CEC/C(UL) Specification: CM

RG Type: 6/U Type

Series Type: Series 6

Suitability

Suitability - Aerial: Yes - When supported by messenger wire

Suitability - Burial: No

Suitability - Hazardous Locations: No

Suitability - Indoor: Yes

Suitability - Outdoor: Yes

Flammability

UL Flammability: UL1685 UL Loading

UL voltage rating: 350 V RMS

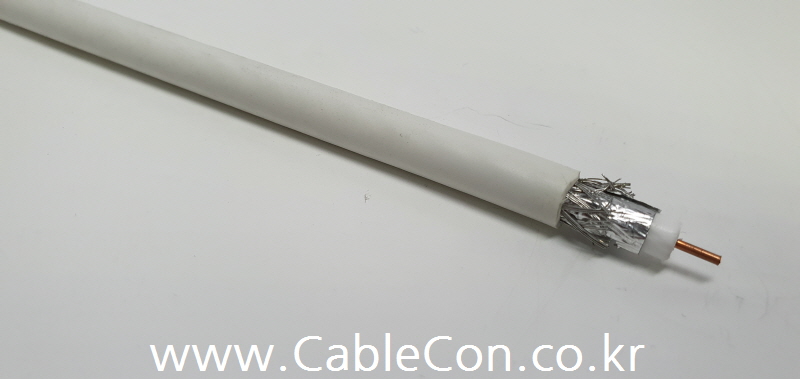

www.cablecon.co.kr  BELDEN 5339B5 사진 www.cable.kr  Belden 카다로그
