RG59/U BELDEN 602PTZ 1Coax 1PR 2C 20,18,18AWG
 ±Û¾´ÀÌ : T.744-0909
Á¶È¸ : 7,457
   http://www.beldenkorea.com/pdf/usa/20.47%20Belden%20USA.pdf [1219]
   https://catalog.belden.com/techdata/EN/602PTZ_techdata.pdf [1234]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±â:  www.cable.kr
BELDEN
¼îÇθô ¹Ù·Î°¡±â:  www.cabletool.kr


BELDEN º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄܢߠ& ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)


¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (ÃæûÀü¶ó°æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±âÀÎõ°­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿ÜÁ¦ÁÖ ¹®ÀÇ)


BELDEN  602PTZ - PTZ (CCTV + Control + Power) Cable
Non-Plenum Number: 502PTZ
Color Code: 000 (Black, Blue, White)
Length: 500ft, 1000ft, 150M, 300M


Application
Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)


Physical Characteristics (Overall)


Conductor:
Coax: 1C x 20(Solid)AWG, BC - Bare Copper
Pair1 : 18(19x30)AWG, BC - Bare Copper
Pair2 : 18 (7x26)AWG, BC - Bare Copper


Insulation:
Coax: FEP - Fluorinated Ethylene Propylene (Foam)
Pair1 : FEP - Fluorinated Ethylene Propylene
Pair2 : PVC-LS - Polyvinyl Chloride (Low Smoke) / Flamarrest?


Color Chart(Inner):
Coax : Core White
Pair1 : Blue & White/Blue
Pair2 : Black & Red


Color Chart(Outer):
Coax Jacket Black
Pair1 Jacket Blue
Pair2 Jacket White


Shield:
Coax : Braid BC - Bare Copper / Coverage: 95 %
Pair1 : Tape Beldfoil?(Alum / Poly )/ Coverage:  100 %
Pair2 : Unshielded


Jacket:
Coax : PVC-LS - Polyvinyl Chloride (Low Smoke) Flamarrest?
Pair1 : PVC-LS - Polyvinyl Chloride (Low Smoke) Flamarrest?
Pair2 : PVC-LS - Polyvinyl Chloride (Low Smoke) Flamarrest?


Standards
NEC Articles: 800
NEC/(UL) Specification: CMP
RG Type: 59/U Type
Other Specification: Video coax: RG 59/U


Flammability
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

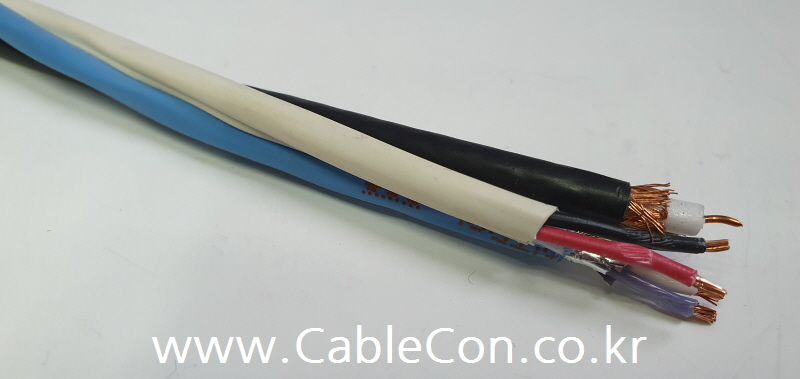

www.cablecon.co.kr  BELDEN 602PTZ »çÁø www.cable.kr  Belden Ä«´Ù·Î±×
