BELDEN 549945 1C(RG-59/U) + 1Pr x 18AWG º§µ§, PTZ (CCTV + Power/Audio) Cable, NEC 800, CMG, FT4FT4
 ±Û¾´ÀÌ : T.744-0909
Á¶È¸ : 7,365
   http://www.beldenkorea.com/pdf/usa/21.25%20Belden%20USA.pdf [1215]
   https://catalog.belden.com/techdata/EN/549945_techdata.pdf [1219]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±â: www.cable.kr
BELDEN ¼îÇθô ¹Ù·Î°¡±â: www.cabletool.kr


BELDEN
º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄܢߠ& ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)


¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (ÃæûÀü¶ó°æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±âÀÎõ°­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿ÜÁ¦ÁÖ ¹®ÀÇ)

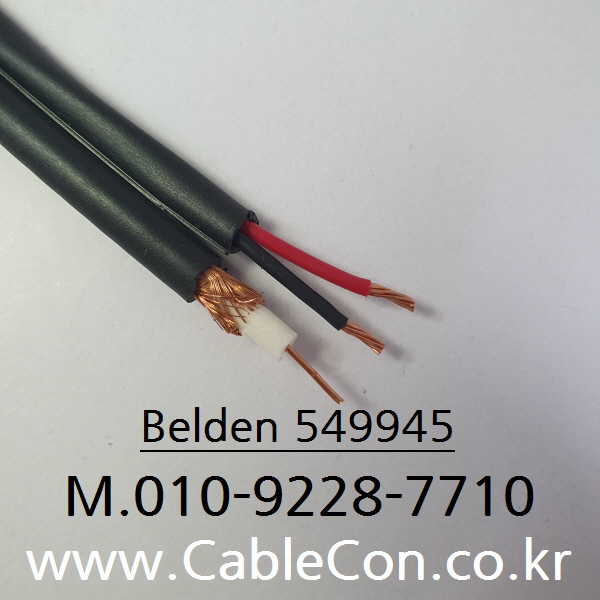

BELDEN  549945 -
PTZ (CCTV + Power/Audio) Cable
Plenum Number: 649948
Color Code: 009 (White), 010 (Black)
Length: 500ft, 1000ft, 150M, 300M


Application
Surveillance, CCTV Camera, PTZ (CCTV + Power/Audio) Cable)


Physical Characteristics (Overall)


Conductor:
Coax: 1C x 20(Solid)AWG, BC - Bare Copper
Pair1 : 18(7x26)AWG, BC - Bare Copper


Insulation:
Coax: PE - Polyethylene (Foam)
Pair1 : PP - Polypropylene


Color Chart(Inner):
Coax : White
Pair1 : Black & Red


Shield:
Coax : Braid BC - Bare Copper / Coverage: 95 %
Pair1 : Unshielded


Jacket:
PVC- Polyvinyl Chloride


Standards
NEC Articles: 800
NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
RG Type: 59/U Type


Flammability
C(UL) Flammability: FT4
UL Flammability: UL1685 FT4 Loading
UL voltage rating: 300 V RMS
